Product Details:
Payment & Shipping Terms:
|
| Usage: | External Turning Tool | Material: | Tungsten Carbide |
|---|---|---|---|
| Application: | Turning Machine | Workpiece: | Steel\ Stainless\ Cast Iron |
| Coating: | CVD/PVD, PVD CVD | Hardness: | 90-93 |
| High Light: | CNMA Carbide Turning Inserts,Cast Iron Carbide Turning Inserts,CNMA190612 Tungsten Carbide Cutter |
||

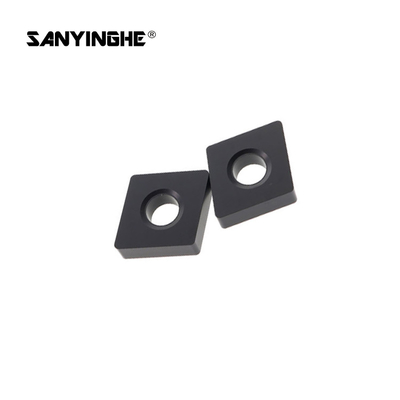

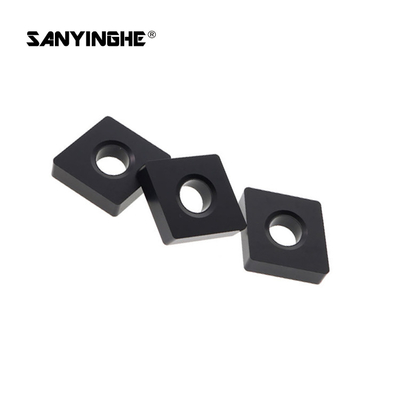

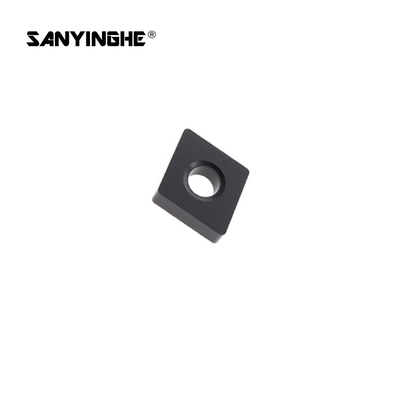

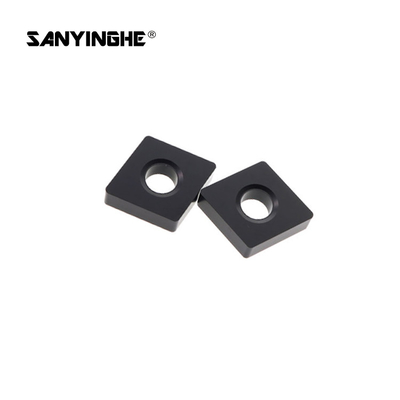

Carbide Turing Inserts CNMA For Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning Tool CNC Cutting
Product Description:
1. Coating:ultra-fine grain coating techenology provides better wear resistance and toughness.
2. Substrate:inserts shows a good capability against plastic deformation and good capability of red hardness.
3. Scope:cemented carbide inserts for turning,milling,grooving ,drilling and aluminium machining.
| Description | Dimensions(mm) | ||||
| L | IC | S | φd | Re | |
| CNMA120404 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
| CNMA120408 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
| CNMA120412 | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 |
| CNMA120416 | 12.9 | 12.7 | 4.76 | 5.16 | 1.6 |
| CNMA160608 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 |
| CNMA160612 | 16.1 | 15.875 | 6.35 | 6.35 | 1.2 |
| CNMA160616 | 16.1 | 15.875 | 6.35 | 6.35 | 1.6 |
| CNMA190612 | 19.3 | 19.05 | 6.35 | 7.94 | 1.2 |
| CNMA190616 | 19.3 | 19.05 | 6.35 | 7.94 | 1.6 |
| CNMG120404 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
| CNMG120408 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
| CNMG120412 | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 |
| CNMG120416 | 12.9 | 12.7 | 4.76 | 5.16 | 1.6 |
| CNMG160608 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 |
| CNMG160612 | 16.1 | 15.875 | 6.35 | 6.35 | 1.2 |
| CNMG160616 | 16.1 | 15.875 | 6.35 | 6.35 | 1.6 |
| CNMG190612 | 19.3 | 19.05 | 6.35 | 7.94 | 1.2 |
| CNMG190616 | 19.3 | 19.05 | 6.35 | 7.94 | 1.6 |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
