Product Details:
Payment & Shipping Terms:
|
| Usage: | External Turning Tool | Coating: | Variety |
|---|---|---|---|
| Feature:: | High Finish Polished | Application: | CNC Machine Tool |
| Workpiece: | Hard Alloy Metal | Material: | Tungsten Carbide |
| High Light: | Aluminum Carbide Turning Inserts,Indexable Carbide Turning Inserts,TCGT110204 |
||

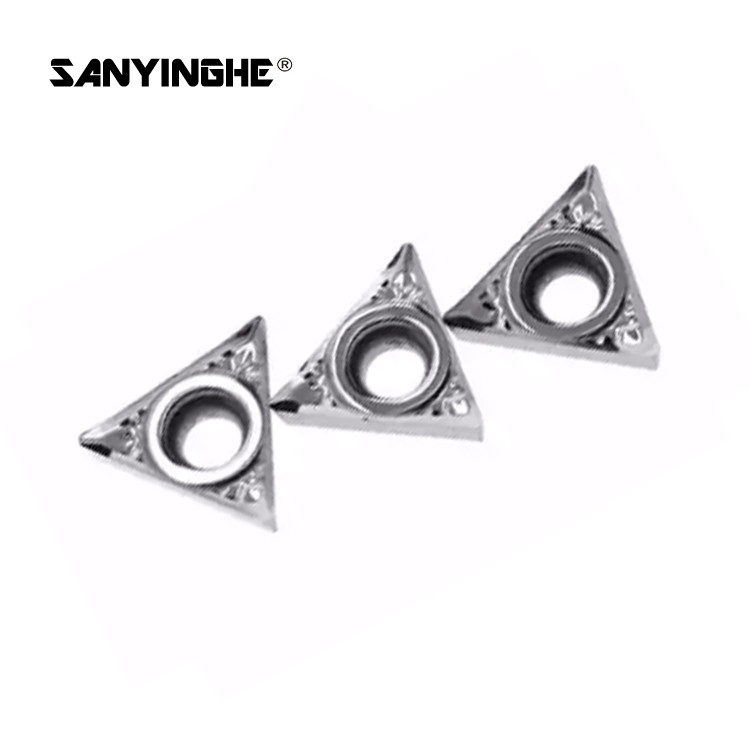

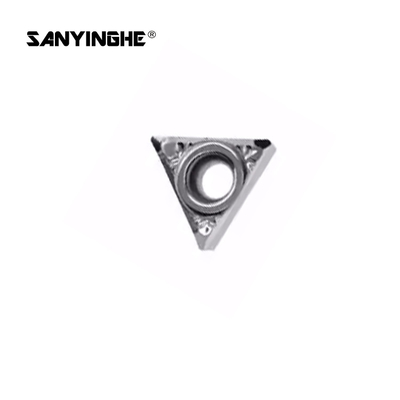

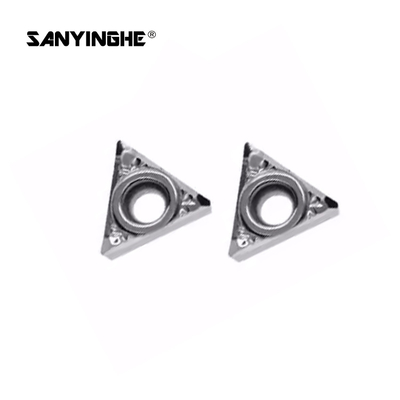

TCGT110204 Aluminum Lathe Insert Indexable Carbide Turning Inserts Tool Parts Carbide Inserts And Cutting Tools
Product Description:
1. Generally mounted on a tool bar with a main deflection angle of 90,91 or 93°,it is suitable for the outer circle of the car or the end face of the car,but it is definitely not suitable for machining in both directions with a large cutting amount
2. It has a benefit the sharper the tip angle,the smaller the cutting force.therefore,under the same conditions,the cutting force of the trian is smaller,wich is more suitable for fine turning.
| ordering code | L | φI.C | S | φd | r |
| SCGT120402-AK | 12.7 | 12.70 | 4.76 | 5.56 | 0.20 |
| SCGT120404-AK | 12.7 | 12.70 | 4.76 | 5.56 | 0.40 |
| SCGT120408-AK | 12.7 | 12.70 | 4.76 | 5.56 | 0.80 |
| TCGT090202-AK | 9.60 | 5.56 | 2.38 | 2.50 | 0.20 |
| TCGT090204-AK | 9.60 | 5.56 | 2.38 | 2.50 | 0.40 |
| TCGT110202-AK | 11.00 | 6.35 | 2.38 | 2.80 | 0.20 |
| TCGT110204-AK | 11.00 | 6.35 | 2.38 | 2.80 | 0.40 |
| TCGT110208-AK | 11.00 | 6.35 | 2.38 | 2.80 | 0.80 |
| TCGT110304-AK | 11.00 | 6.35 | 3.18 | 2.80 | 0.40 |
| TCGT110308-AK | 11.00 | 6.35 | 3.18 | 2.80 | 0.80 |
| TCGT16T302-AK | 16.50 | 9.52 | 3.97 | 4.40 | 0.20 |
| TCGT16T304-AK | 16.50 | 9.52 | 3.97 | 4.40 | 0.40 |
| TCGT16T308-AK | 16.50 | 9.52 | 3.97 | 4.40 | 0.80 |
| VCGT110302-AK | 11.00 | 6.35 | 3.18 | 2.80 | 0.20 |
| VCGT110304-AK | 11.00 | 6.35 | 3.18 | 2.80 | 0.40 |
| VCGT160402-AK | 16.50 | 9.52 | 4.76 | 4.40 | 0.20 |
| VCGT160404-AK | 16.50 | 9.52 | 4.76 | 4.40 | 0.40 |
| VCGT160408-AK | 16.50 | 9.52 | 4.76 | 4.40 | 0.80 |
| VCGT160412-AK | 16.50 | 9.52 | 4.76 | 4.40 | 1.20 |
| VCGT220530-AK | 22.00 | 12.70 | 5.56 | 5.50 | 3.00 |
| WNMG080402-AK | 8.70 | 12.70 | 4.76 | 5.16 | 0.20 |
| WNMG080404-AK | 8.70 | 12.70 | 4.76 | 5.16 | 0.40 |
| WNMG080408-AK | 8.70 | 12.70 | 4.76 | 5.16 | 0.80 |
| WNMG120404-HA | 12.90 | 12.70 | 4.76 | 5.16 | 0.40 |
| WNMG120408-HA | 12.90 | 12.70 | 4.76 | 5.16 | 0.80 |
| TNMG110404-HA | 11.00 | 6.35 | 3.18 | 3.18 | 0.40 |
| TNMG160404-HA | 16.50 | 9.52 | 4.76 | 3.81 | 0.40 |
| TNMG160408-HA | 16.50 | 9.52 | 4.76 | 3.81 | 0.80 |
| WNMG080408-HA | 8.70 | 12.7 | 4.76 | 5.16 | 0.40 |
| WNMG080408-HA | 8.70 | 12.7 | 4.76 | 5.16 | 0.80 |
| GIPA-8.00-4.00 | 8.00 | 6.00 | 4.00 |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
