Product Details:
Payment & Shipping Terms:
|
| Usage: | External Turning Tool | Coating: | CVD/PVD |
|---|---|---|---|
| Material:: | Tungsten Carbide | Application: | Internal External Turning Inserts |
| Grade: | ISO Grades | Hardness:: | HRA89-HRA92.9 |
| High Light: | External CNC Carbide Inserts,Turning CNC Carbide Inserts,WNMG080404 aluminum turning inserts |
||

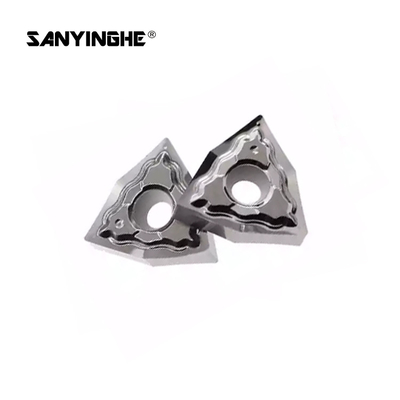

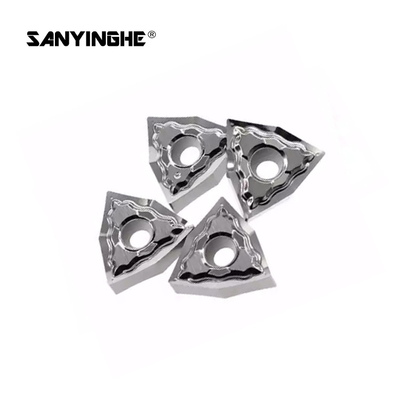

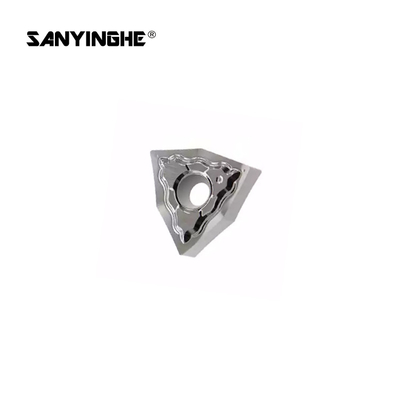

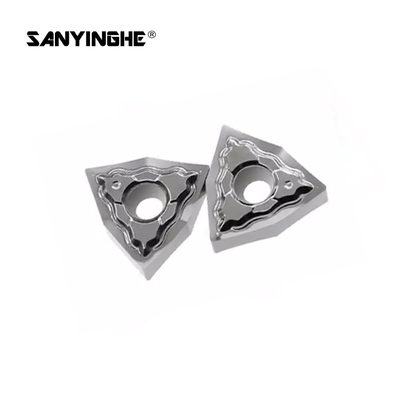

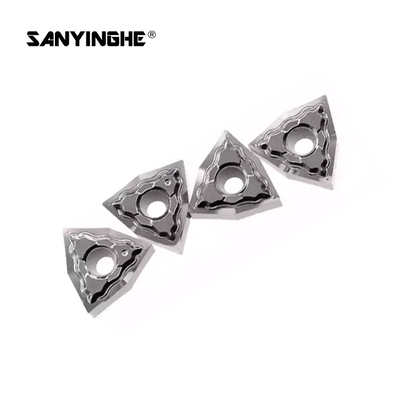

WNMG080404 CNC Carbide Inserts Aluminium Turning Insert External Turning Carbide Tips
Product Description:
1. CNC blade is the floorboard of the indexable turning blades, is the mainstream of modern metal cutting applications of products are mainly used in metal cutting milling cutting cutting thread turning areas such as the material can be divided into the coating blade metal ceramic blade ceramic knife carbide blade super-hard etc.
2. Its characteristic is high efficiency high wear-resisting, than traditional welding blade alloy blade processing efficiency more than four times as coating technology advances, the key technology of wear-resistant high temperature resistant breakthrough will further improve the efficiency and reduce the processing cost.
CNC turning and milling tungsten carbide tool products are widely used in:
l Automobile manufacturing,
l Mold manufacturing,
l Aviation industry,
l Defense industry,
l Heavy industry and many other fields.
We can produce various types of tungsten carbide tool blades according to different custom drawings. We can provide a complete set of solutions for the processing field.
| ordering code | L | φI.C | S | φd | r |
| SCGT120402-AK | 12.7 | 12.70 | 4.76 | 5.56 | 0.20 |
| SCGT120404-AK | 12.7 | 12.70 | 4.76 | 5.56 | 0.40 |
| SCGT120408-AK | 12.7 | 12.70 | 4.76 | 5.56 | 0.80 |
| TCGT090202-AK | 9.60 | 5.56 | 2.38 | 2.50 | 0.20 |
| TCGT090204-AK | 9.60 | 5.56 | 2.38 | 2.50 | 0.40 |
| TCGT110202-AK | 11.00 | 6.35 | 2.38 | 2.80 | 0.20 |
| TCGT110204-AK | 11.00 | 6.35 | 2.38 | 2.80 | 0.40 |
| TCGT110208-AK | 11.00 | 6.35 | 2.38 | 2.80 | 0.80 |
| TCGT110304-AK | 11.00 | 6.35 | 3.18 | 2.80 | 0.40 |
| TCGT110308-AK | 11.00 | 6.35 | 3.18 | 2.80 | 0.80 |
| TCGT16T302-AK | 16.50 | 9.52 | 3.97 | 4.40 | 0.20 |
| TCGT16T304-AK | 16.50 | 9.52 | 3.97 | 4.40 | 0.40 |
| TCGT16T308-AK | 16.50 | 9.52 | 3.97 | 4.40 | 0.80 |
| VCGT110302-AK | 11.00 | 6.35 | 3.18 | 2.80 | 0.20 |
| VCGT110304-AK | 11.00 | 6.35 | 3.18 | 2.80 | 0.40 |
| VCGT160402-AK | 16.50 | 9.52 | 4.76 | 4.40 | 0.20 |
| VCGT160404-AK | 16.50 | 9.52 | 4.76 | 4.40 | 0.40 |
| VCGT160408-AK | 16.50 | 9.52 | 4.76 | 4.40 | 0.80 |
| VCGT160412-AK | 16.50 | 9.52 | 4.76 | 4.40 | 1.20 |
| VCGT220530-AK | 22.00 | 12.70 | 5.56 | 5.50 | 3.00 |
| WNMG080402-AK | 8.70 | 12.70 | 4.76 | 5.16 | 0.20 |
| WNMG080404-AK | 8.70 | 12.70 | 4.76 | 5.16 | 0.40 |
| WNMG080408-AK | 8.70 | 12.70 | 4.76 | 5.16 | 0.80 |
| WNMG120404-HA | 12.90 | 12.70 | 4.76 | 5.16 | 0.40 |
| WNMG120408-HA | 12.90 | 12.70 | 4.76 | 5.16 | 0.80 |
| TNMG110404-HA | 11.00 | 6.35 | 3.18 | 3.18 | 0.40 |
| TNMG160404-HA | 16.50 | 9.52 | 4.76 | 3.81 | 0.40 |
| TNMG160408-HA | 16.50 | 9.52 | 4.76 | 3.81 | 0.80 |
| WNMG080408-HA | 8.70 | 12.7 | 4.76 | 5.16 | 0.40 |
| WNMG080408-HA | 8.70 | 12.7 | 4.76 | 5.16 | 0.80 |
| GIPA-8.00-4.00 | 8.00 | 6.00 | 4.00 |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
