Product Details:
Payment & Shipping Terms:
|
Usage: | External Turning Tool | Coating: | PVD |
---|---|---|---|
Hardness: | 40-60 | Application: | CNC Machine Tool |
Advantage: | High Wear Resistance | Material: | 100% Virgin Tungsten Carbide |
High Light: | PVD Carbide Turning Inserts,CNC Carbide Turning Inserts,VBGT160402 |

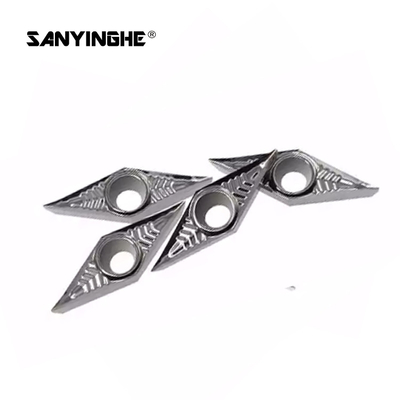

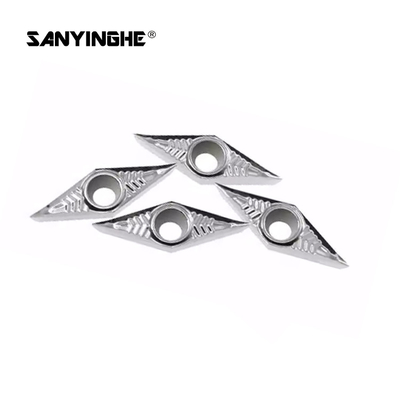

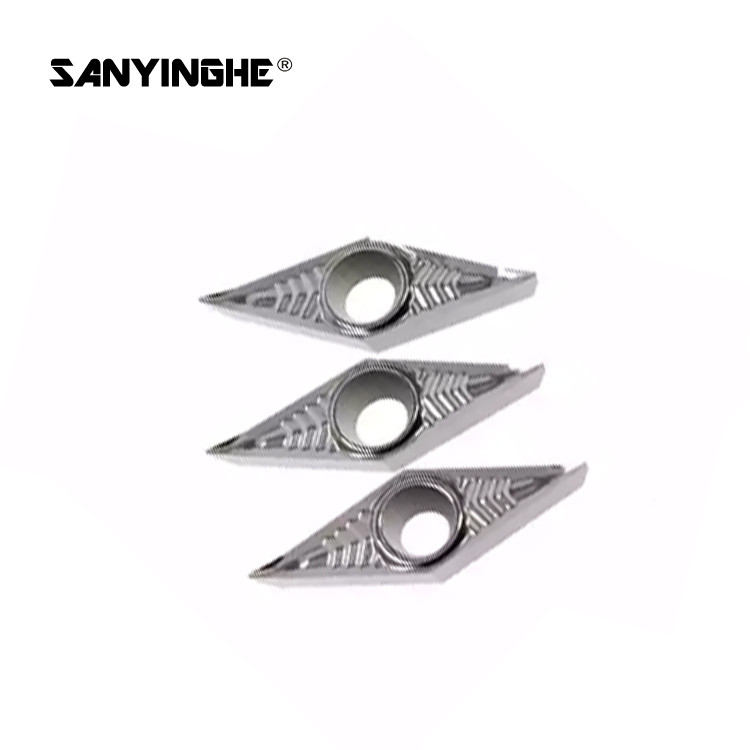

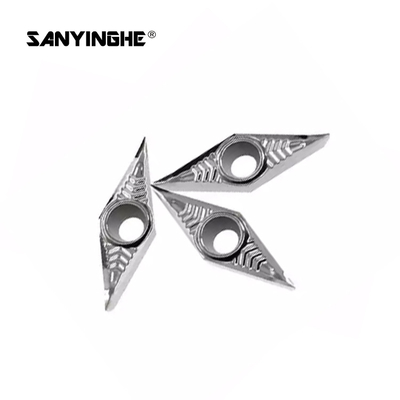

Aluminum inserts VBGT160402 Carbide Insert CNC Lathe Tools Milling Insert Aluminum Turning Tools
Product Description:
1. High rake angle and tabby pattern chip pochet-low cutting load
2. Unique rake angle design-Effective chip breaking and good chip flow
3. Unique and 3-dimensional top face-longer tool life and excellent surface roughnes
4. Tabby pattern and sharp cutting edge-Distrbuting cutting load,long tool life
5. Buffed on top face-Excellent machining ,reducing built-up edge,excellent chip flow.
Designation | Dimensions(mm) | ||||
L | IC | S | φd | Re | |
VCGT110302-AK | 11.0 | 6.35 | 3.18 | 2.8 | 0.2 |
VCGT110304-AK | 11.0 | 6.35 | 3.18 | 2.8 | 0.4 |
VCGT160402-AK | 16.5 | 9.525 | 4.76 | 4.4 | 0.2 |
VCGT160404-AK | 16.5 | 9.525 | 4.76 | 4.4 | 0.4 |
VCGT160408-AK | 16.5 | 9.525 | 4.76 | 4.4 | 0.8 |
VBGT160402-AK | 16.5 | 9.525 | 4.76 | 4.4 | 0.2 |
VBGT160404-AK | 16.5 | 9.525 | 4.76 | 4.4 | 0.4 |
VBGT160408-AK | 16.5 | 9.525 | 4.76 | 4.4 | 0.8 |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
