Product Details:
Payment & Shipping Terms:
|
| Usage: | Threading Tool | Coating: | PVD Coated |
|---|---|---|---|
| Color: | Black Coating | Workpiece: | Steel\ Stainless\ Cast Iron |
| Hardness: | 40-60 | Advantage: | High Wear Resistance |
| High Light: | 16NR Carbide Threading Inserts,8UN Carbide Threading Inserts,Cnc Solid Carbide Insert |
||

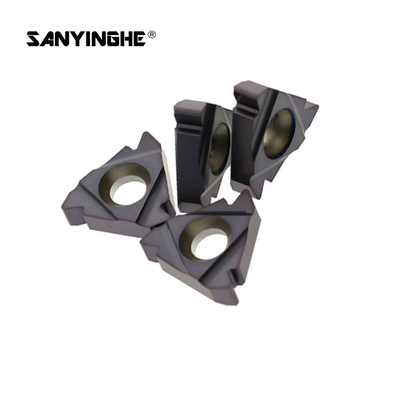

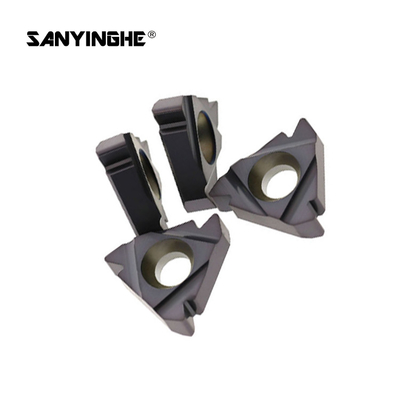

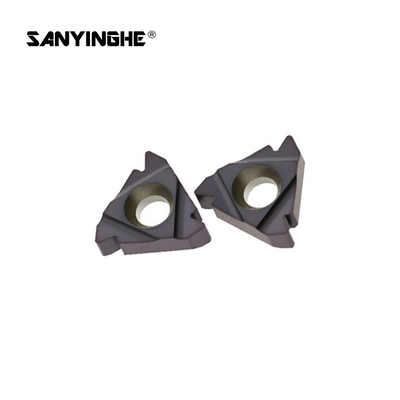

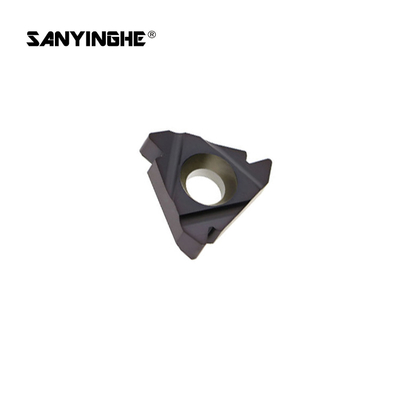

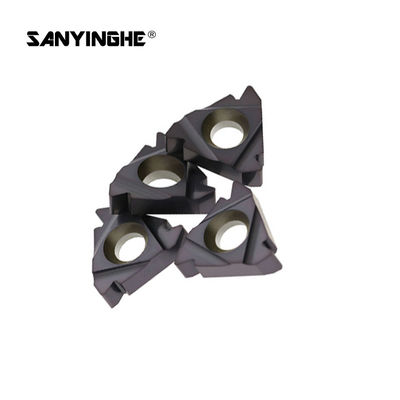

Carbide Threading Inserts 16NR 8UN Carbide Cutting Tool Insert Cnc Carbide Threading Inserts For Stainless Steel
Product Description:
3. A large variety of grades and coatings tailored for different materials and manufacturing processes ;
4. High-quality threads produced by the inserts ;
5. Capable of cutting threads as small as 0.5 mm ;
6. Inserts available for internal and external jobs, and both right-hand and left-hand threads .
| External | interal | pitch | dimension | |||
| L | D | Y | X | |||
| 16ER/L 28W | 16NR/L 28W | 28 | 16 | 9.525 | 0.7 | 0.6 |
| 16ER/L 26W | 16NR/L 26W | 26 | 0.7 | 0.7 | ||
| 16ER/L 24W | 16NR/L 24W | 24 | 0.8 | 0.7 | ||
| 16ER/L 20W | 16NR/L 20W | 20 | 0.8 | 0.7 | ||
| 16ER/L 19W | 16NR/L 19W | 19 | 1.0 | 0.8 | ||
| 16ER/L 18W | 16NR/L 18W | 18 | 1.0 | 0.9 | ||
| 16ER/L 16W | 16NR/L 16W | 16 | 1.1 | 1.0 | ||
| 16ER/L 14W | 16NR/L 14W | 14 | 1.2 | 1.1 | ||
| 16ER/L 12W | 16NR/L 12W | 12 | 1.4 | 1.1 | ||
| 16ER/L 11W | 16NR/L 11W | 11 | 1.5 | 1.1 | ||
| 16ER/L10W | 16NR/L10W | 10 | 1.5 | 1.1 | ||
| 16ER/L 9W | 16NR/L 9W | 9 | 1.7 | 1.2 | ||
| 16ER/L 8W | 16ER/L 8W | 8 | 1.5 | 2.3 | ||
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
Contact Person: Eric
Tel: 86-15675381268
Fax: 86-0731-22879007
