Product Details:
Payment & Shipping Terms:
|
| Usage: | Grooving Machining | Coating: | PVD Coated |
|---|---|---|---|
| Color: | Silver Grey Coating | Application: | Insert For Grooving |
| Hardness: | HRC32-58 | Workpiece: | Steel\ Stainless\ Cast Iron |
| High Light: | Tungsten Cemented Carbide Turning Inserts,PVD Carbide Turning Inserts,TDC2 TT7220 |
||

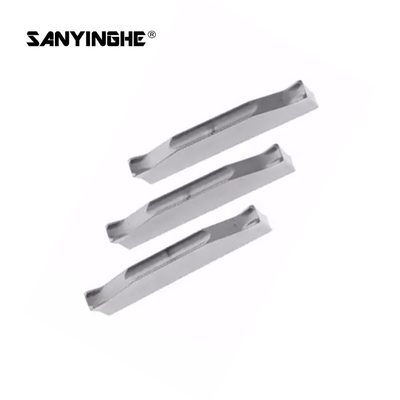

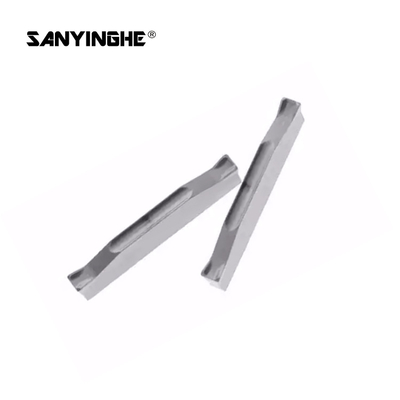

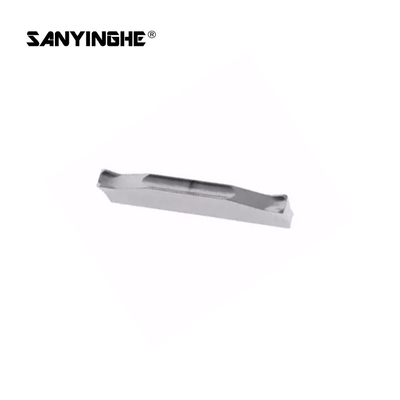

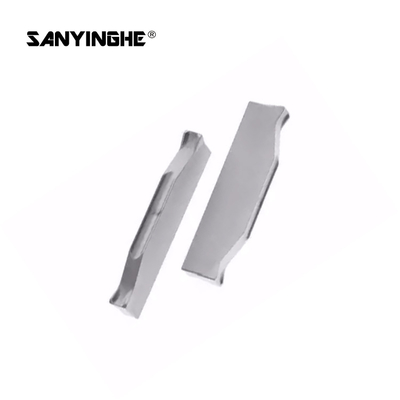

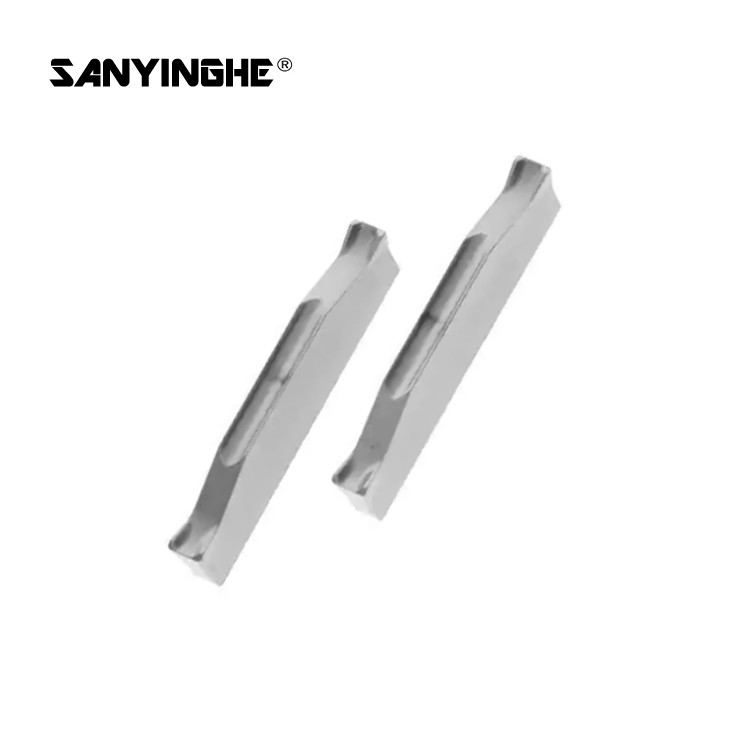

TDC2 TT7220 Tungsten Cemented Grooving Carbide Inserts Carbide Inserts PVD CNC Tool Cutter Cutting Off Grooving Inserts
Product Description:
1. TDC (Double-ended) : Double-ended inserts with C-Type chip breaker for Parting & Grooving of hard materials & tough applications in medium-to-high feed of steel, alloy steel & stainless steel.
2. Carbide grooveing inserts:suitable for mild steel,medium carbon steel,stainless steel,cast iron.
3. When the blade is near the center of the workpiece,lower the feed rate 30% lower,which helps to improve blade life.
4. Excellent groove structure for controlling chip flow and curling.Reduce cutting resistance by 20%and reduce vibration.
| Insert CAT.NO | Dimensions(mm) | ||
| L | t | b | |
| TDC2 | 20.0 | 4.7 | 1.7 |
| TDC3 | 20.0 | 4.7 | 2.4 |
| TDC4 | 20.0 | 4.7 | 3.0 |
| TDT3 | 20.0 | 4.7 | 2.2 |
| TDT4 | 20.0 | 4.7 | 3.0 |
| TDJ2 | 20.0 | 4.7 | 1.7 |
| TDJ3 | 20.0 | 4.7 | 2.4 |
| TDJ4 | 20.0 | 4.7 | 3.0 |
| TDUX3 | 20.0 | 4.7 | 2.2 |
| TDUX4 | 20.0 | 4.7 | 3.0 |
| ZTED02503-MG | 17.0 | 2.5 | |
| ZTFD0303-MG | 17.0 | 3.0 | |
| ZTGD0404-MG | 22.0 | 4.0 | |
| ZTHD0504-MG | 22.0 | 5.0 | |
| ZTKD0608-MG | 22.0 | 6.0 | |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
