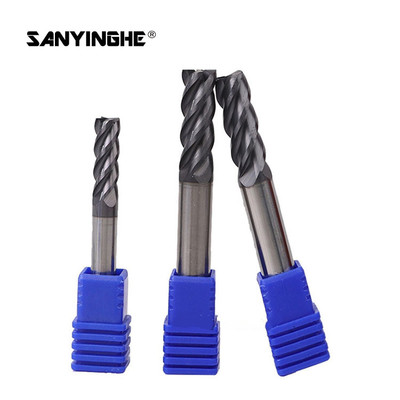

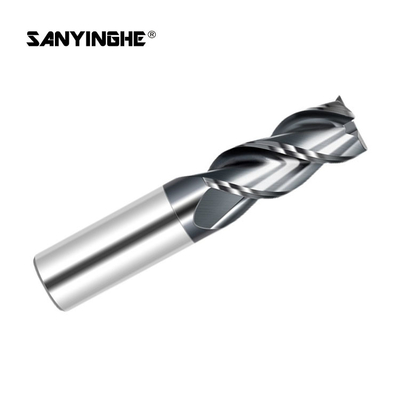

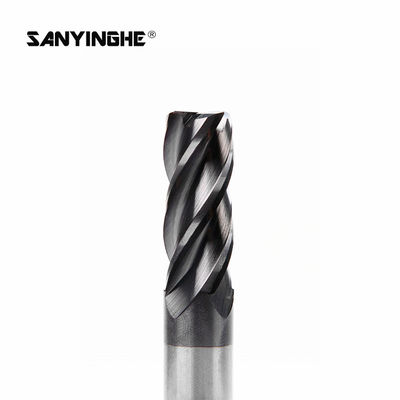

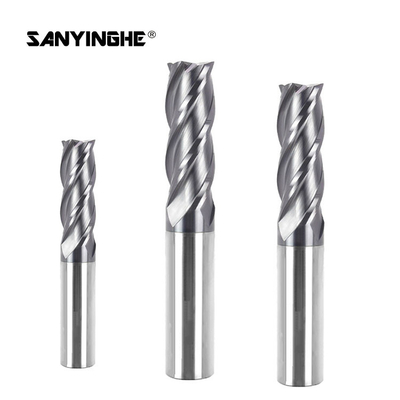

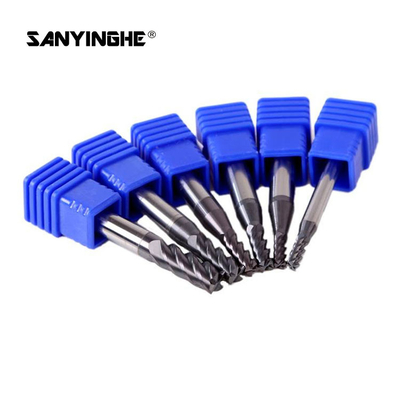

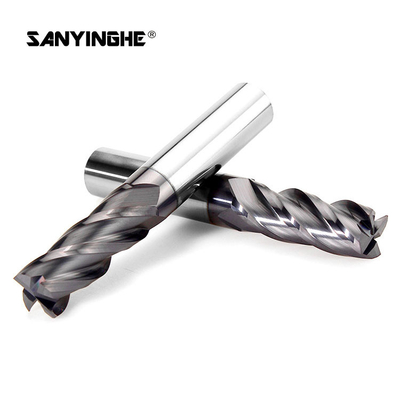

65 Degrees Tungsten Carbide Square End Mill 2 3 4 6 Flute Flat Milling Cutter

65 Degrees Tungsten Carbide Square End Mill 2 3 4 6 Flute Flat Milling Cutter
65 Degrees Tungsten Carbide Square End Mill 2 3 4 6 Flute Flat Milling Cutter 65 Degrees Tungsten Carbide Square End Mill 2 3 4 6 Flute Flat Milling Cutter 65 Degrees Tungsten Carbide Square End Mill 2 3 4 6 Flute Flat Milling Cutter 65 Degrees Tungsten Carbide Square End Mill 2 3 4 6 Flute Flat Milling Cutter 65 Degrees Tungsten Carbide Square End Mill 2 3 4 6 Flute Flat Milling Cutter 65 Degrees Tungsten Carbide Square End Mill 2 3 4 6 Flute Flat Milling Cutter

Large Image :  65 Degrees Tungsten Carbide Square End Mill 2 3 4 6 Flute Flat Milling Cutter

Product Details:
Place of Origin: Zhuzhou,China
Brand Name: Sanyinghe
Certification: ISO
Model Number: 4-20mm
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: 1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs/month
Detailed Product Description
Material: Tungsten Carbide Name: End Mill, Square Milling Cutter
HRC: 45/55/60/65 Degrees Standard Size: 4mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm
High Light:

65 Degrees Carbide Square End Mill

,

6 Flute Carbide Square End Mill

,

3 Flute Milling Cutter

2 3 4 6 Flute Flat Milling Cutter Tungsten Carbide Square End Mill For Stainless Steel High Hardness Metal



PRODUCT DESCRIPTION



1. Customized Milling Cutter
2. The large core diameter is more stable,Large Chipremoval Groove

3. Wear- resitace coating
4.  Bottom chamfering for easy handing.

5. Tungsten carbide material
High hardness, not easy to rust, high cost performance.

6. Cut a variety of materials, and can customize the milling cutter according to the needs of high-speed steel, alloy or ceramic.



Customized support:
Flat End Mill
Flute:
3, 4, 5, 6, Customize
Coating:
Uncoated, Customize
Material:
Tungsten carbide, Customize
Precision:
High Precision
Controlling Mode:
CNC
HRA:
89-93.8
RPM:
<8000RPM



Item
AlTiN
TiSiN
Nano
Nano
Hardness(HV)
3200
3600
42(GPA)
43(GPA)
Thickness(UM)
2.5-3
3
3
3
Oxidation Temp(°)
900
1000
1200
1300
Friction Coeffient
0.3
0.45
0.4
0.45





Material
Carbide, Tungsten carbide
Coating
AlCrN
Product Name
end milling cutter
Application
CNC processing
Suitable for
Cast iron, carbon steel, alloy steel, non-ferrous metals, etc.



Specification
Tool specifications (mm)
Blade diameter
Blade length
Number of Blade
Shank diameter
Full Length

D1.0-3L-4F-4D-50L

1.0

3

4

4

50

D1.5-4.5L-4F-4D-50L

1.5

4.5

4

4

50

D2.0-6L-4F-4D-50L

2.0

6

4

4

50

D2.5-7.5L-4F-4D-50L

2.5

7.5

4

4

50

D3.0-9L-4F-3D-50L

3.0

9

4

3

50

D3.0-9L-4F-4D-50L

3.0

9

4

4

50

D3.5-10L-4F-4D-50L

3.5

10

4

4

50

D4-12L-4F-4D-50L

4.0

12

4

4

50

D5-15L-4F-5D-50L

5.0

15

4

5

50

D5-15L-4F-6D-50L

5.0

15

4

6

50

D6-18L-4F-6D-50L

6.0

18

4

6

50

D8-25L-4F-8D-60L

8.0

25

4

8

60

D10-30L-4F-10D-75L

10

30

4

10

75

D12-32L-4F-12D-75L

12

32

4

12

75

D14-40L-4F-14D-100L

14

40

4

14

100

D16-45L-4F-16D-100L

16

45

4

16

100

D18-45L-4F-18D-100L

18

45

4

18

100

D20-48L-4F-20D-100L

20

48

4

20

100

D3-12L-4F-3D-75L

3.0

12

4

3

75

D3-12L-4F-3D-100L

3.0

12

4

3

100

D4-16L-4F-4D-75L

4.0

16

4

4

75

D4-16L-4F-4D-100L

4.0

16

4

4

100

D5-18L-4F-5D-75L

5.0

18

4

5

75

D5-18L-4F-5D-100L

5.0

18

4

5

100

D6-22L-4F-6D-75L

6.0

22

4

6

75

D6-22L-4F-6D-100L

6.0

22

4

6

100

D6-40L-4F-6D-100L

6.0

40

4

6

100

D6-25L-4F-6D-150L

6.0

25

4

6

150

D8-25L-4F-8D-75L

8.0

25

4

8

75

D8-30L-4F-8D-100L

8.0

30

4

8

100

D8-40L-4F-8D-100L

8.0

40

4

8

100

D8-35L-4F-8D-150L

8.0

35

4

8

150

D10-30L-4F-10D-100L

10

30

4

10

100

D10-45L-4F-10D-100L

10

45

4

10

100

D10-50L-4F-10D-100L

10

50

4

10

100

D10-40L-4F-10D-150L

10

40

4

10

150

D12-35L-4F-12D-100L

12

35

4

12

100

D12-50L-4F-12D-100L

12

50

4

12

100

D12-45L-4F-12D-150L

12

45

4

12

150

D14-45L-4F-14D-150L

14

45

4

14

150

D16-50L-4F-16D-150L

16

50

4

16

150

D20-55L-4F-20D-150L

20

55

4

20

150



65 Degrees Tungsten Carbide Square End Mill 2 3 4 6 Flute Flat Milling Cutter 065 Degrees Tungsten Carbide Square End Mill 2 3 4 6 Flute Flat Milling Cutter 165 Degrees Tungsten Carbide Square End Mill 2 3 4 6 Flute Flat Milling Cutter 2
