Product Details:
Payment & Shipping Terms:
|
| Material: | Carbide | Name: | End Mill |
|---|---|---|---|
| Application: | Steel, Stainless Steel, Mould Steel, Carbon Steel, Copper, | Usage: | General/High Speed |
| High Light: | OEM Carbide Square End Mill,20mm Carbide Square End Mill,TiAIN flat end mill |
||
PRODUCT DESCRIPTION

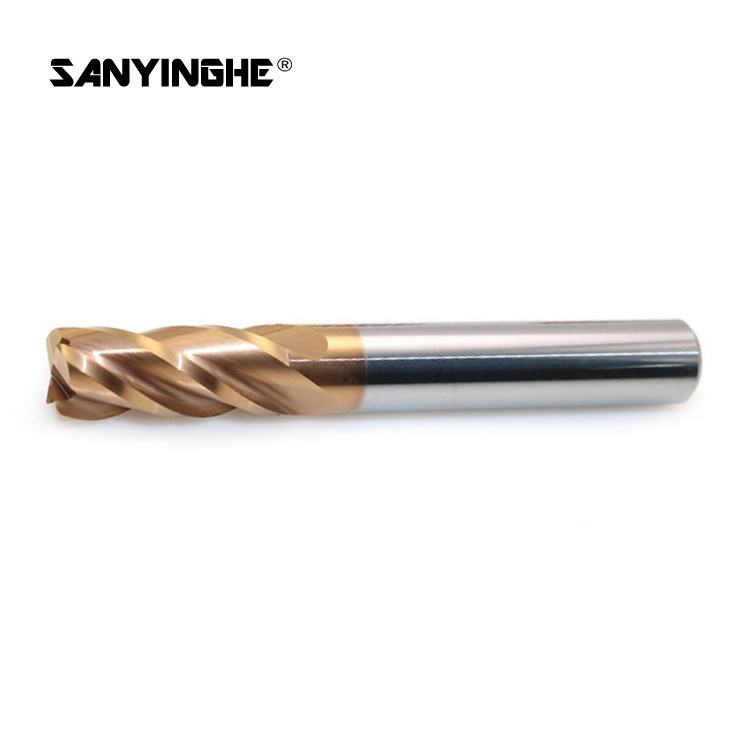

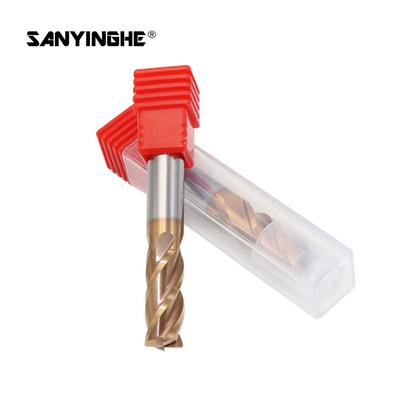

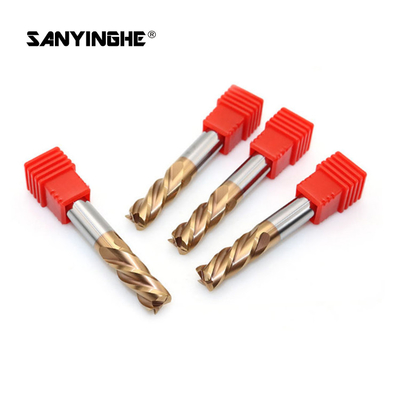

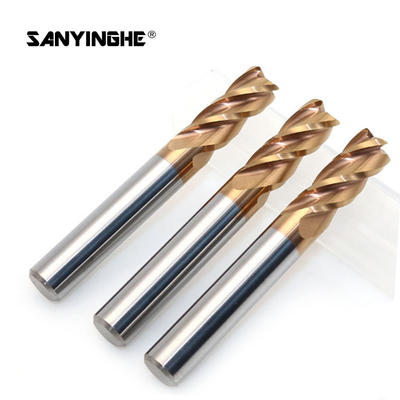

1. Square end milling cutters are also known as a "flat end mills". The corners of these mills are sharp and generate a 90° angle. They can be single end or double end and they can be made from solid carbide or various compositions of tungsten carbide.
2. Carbide square end mills are the most productive. They can be general purpose or high perfomance geometries. They can be used used for plunging, grooving, side milling, face milling, and counter boring.
3. These are the most popular milling cutters in the industry. They are available in a wide variety of diameter sizes.
|
Flute diameter |
Flute length | Overall length | Shank diameter | Flute diameter | Flute length | Overall length | Shank diameter |
| 0.3-0.6 | 1.5 | 50 | ∅4 | ∅5 | 13 | 50 | ∅6 |
| 0.7-0.8 | 2.5 | 50 | ∅4 | ∅6 | 15 | 50 | ∅6 |
| ∅1 | 3 | 50 | ∅4 | ∅7 | 18 | 60 | ∅8 |
| ∅1.5 | 4 | 50 | ∅4 | ∅8 | 20 | 60 | ∅8 |
| ∅2 | 5 | 50 | ∅4 | ∅9 | 22 | 75 | ∅10 |
| ∅2.5 | 6 | 50 | ∅4 | ∅10 | 30 | 75 | ∅10 |
| ∅3 | 8 | 50 | ∅3 | ∅12 | 30 | 75 | ∅12 |
| ∅3.5 | 9 | 50 | ∅4 | ∅14 | 40 | 100 | ∅14 |
| ∅4 | 10 | 50 | ∅4 | ∅16 | 40 | 100 | ∅16 |
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
