| Material: | Tungsten Carbide | HRC: | HRC50 |
|---|---|---|---|
| Advantages: | High Wear Resistance,high Temperature Resist,durable | Type: | CNC Cutting Milling Machining |
| Type-1: | End Mill, Standard Or Custom | Usage: | Carbon Steel,Alloy Steel,Cast Iron |
| High Light: | HRC50 Solid Carbide End Mills,Micro Solid Carbide End Mills,1.1mm Ball Nose Milling Cutter |
||

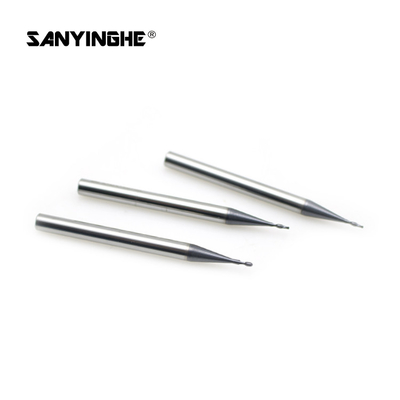

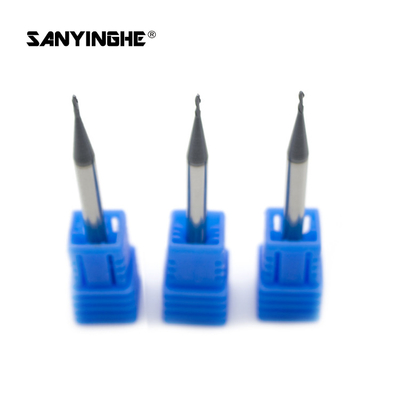

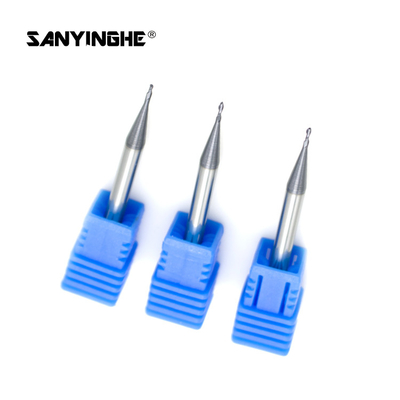

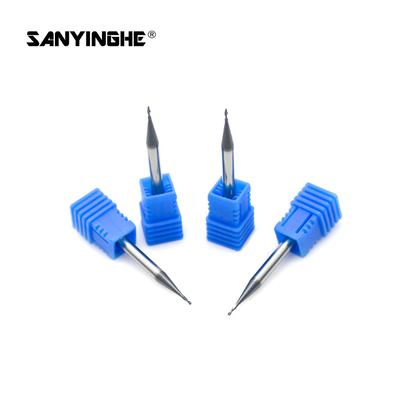

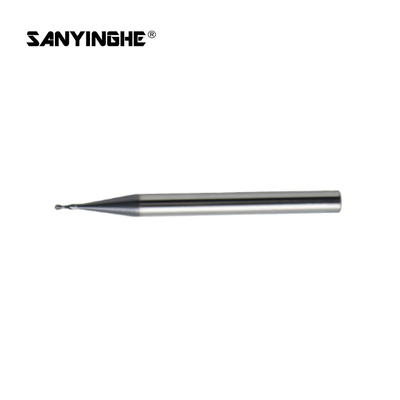

HRC50 Solid Tungsten Carbide 2 Flute Micro End Mill 1.1mm Ball Nose Milling Cutter Cnc Cutting Tools For Milling
Specifications:
1 Materials: High quality carbide rods materials,usd 0.6um ultra-fine grain
WC powder,various grades for choose for process various hardness of materials
2 Suitable for low alloy steel,hardened steel, cast iron and other material.Ultra-fine grained carbide material.
3.Processing hardness ≤ 58HRC.
4.Universal handle type, widely use for clamping and fastening, smooth surface and high grinding precision.
5.Application: CNC Processing, Router Bit, Woodworking Metal Milling Cutter, Milling Tool, Lathe Tool, Carving, Engraving Tool.
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
Standard Sizes:
| Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
| 1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
| 1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
| 2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
| 2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
| 3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
| 3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
| 4.0×10×4D×50L | 4 | 10 | 4 | 50 |
| 4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
| 5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
| 5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
| 6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
| 6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
| 7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
| 7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
| 8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
| 8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
| 9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
| 9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
| 10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
| 10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
| 11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
| 11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
| 12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
| 13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
| 14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
| 15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
| 16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
| 17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
| 18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
| 19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
| 20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
| 25.0×40×25D×100L | 25.0 | 40 | 25 | 100 |
