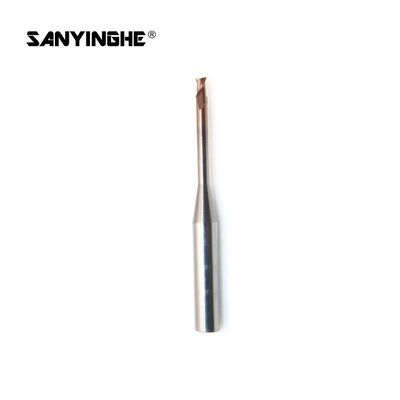

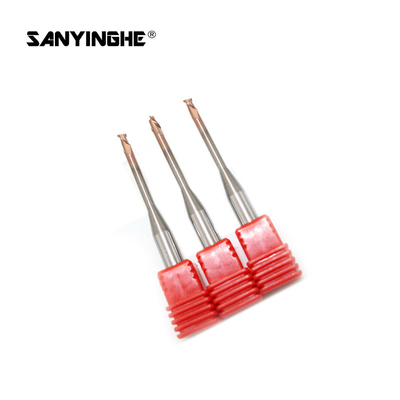

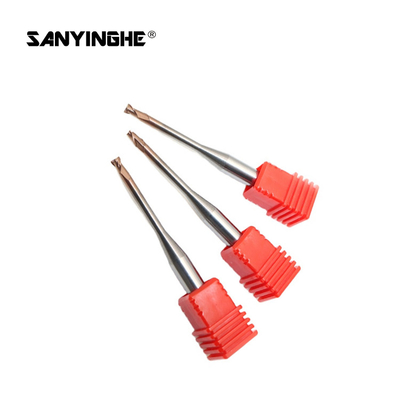

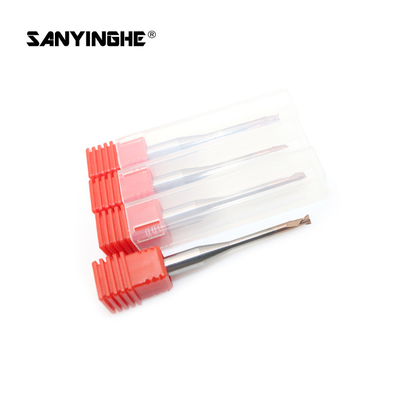

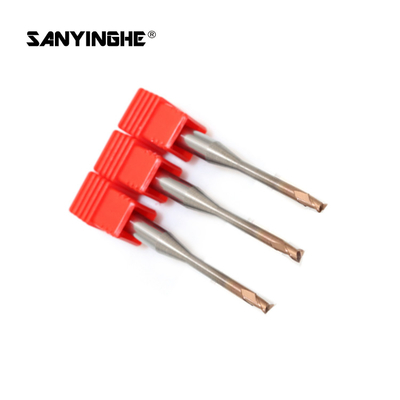

Two Flutes Cnc Solid Carbide End Mills Flat Micro Milling Cutter For 0.1mm Milling Cutter Tools Hard Steel

Two Flutes Cnc Solid Carbide End Mills Flat Micro Milling Cutter For 0.1mm Milling Cutter Tools Hard Steel
Two Flutes Cnc Solid Carbide End Mills Flat Micro Milling Cutter For 0.1mm Milling Cutter Tools Hard Steel Two Flutes Cnc Solid Carbide End Mills Flat Micro Milling Cutter For 0.1mm Milling Cutter Tools Hard Steel Two Flutes Cnc Solid Carbide End Mills Flat Micro Milling Cutter For 0.1mm Milling Cutter Tools Hard Steel Two Flutes Cnc Solid Carbide End Mills Flat Micro Milling Cutter For 0.1mm Milling Cutter Tools Hard Steel Two Flutes Cnc Solid Carbide End Mills Flat Micro Milling Cutter For 0.1mm Milling Cutter Tools Hard Steel

Large Image :  Two Flutes Cnc Solid Carbide End Mills Flat Micro Milling Cutter For 0.1mm Milling Cutter Tools Hard Steel

Product Details:
Place of Origin: Zhuzhou,China
Brand Name: Sanyinghe
Certification: ISO
Model Number: As your requirements
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: 1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Material: Tungsten Carbide Usage: Coper.Cast Iron.Carbon Steel.Mould Steel
Controlling Mode: CNC Tooling System Processing Type: Finishing Maching
Machine Type: Miling Machine Size: 0.2*0.4*0.3*50**3T
High Light:

0.1mm Solid Carbide End Mills

,

Micro Solid Carbide End Mills

,

Two Flute End Mill

Two Flutes Cnc Carbide End Mill Flat Micro Milling Cutter For 0.1mm Milling Cutter Tools Hard Steel



PRODUCT DESCRIPTION



1.Material : tungsten carbide
2.coating :TiAiN / AiTiN or as you request
3.Chemical Composition : WC 90.0%
4.Hardness (HV) : 1675
5.Compressive Strength(N/mm2) :5600
6.Transverse-rupture strength (N/mm2) :3600
7.Frature Toughness 10.0

Suitable for the various different material workpiece :
aluminum/steel/cast iron/ductile cast iron/stainless/wood/PVC/acrylic and etc.



Product Name

 Carbide End Mills
Material Carbide
Helix Angle 10degree,15degree,25degree,35degree,45degree,55degree
Size Metric & Inch Size Based On Your Requirement
HRC 45/55/58/60/65/70
Features Steel, Stainless Steel, Die Steel, Mould Steel, Carbon Steel, Cast Iron, Copper, etc.



NO
Specification
Cutting Dia
Helpful Length
Shank
Total Length
Flute
1
D0.3*2/3/4*D4*50*2T
0.3
2/3/4
4
50
2T
2
D0.4*2/3/4/5/6*D4*50*2T
0.4
2/3/4/5/6
4
50
2T
3
D0.5*2/3/4/6/8*D4*50*2T
0.5
2/3/4/6/8
4
50
2T
4
D0.6*2/3/4/6/8*D4*50*2T
0.6
2/3/4/6/8
4
50
2T
5
D0.7*3/4/6/8/10*D4*50*2T
0.7
3/4/6/8/10
4
50
2T
6
D0.8*3/4/6/8/10*D4*50*2T
0.8
3/4/6/8/10
4
50
2T
7
D0.9*3/4/6/8/10*D4*50.2T
0.9
3/4/6/8/10
4
50
2T
8
R0.15*2/3/4*D4*50*2T
0.3
2/3/4
4
50
2T
9
R0.2*2/3/4/5/6*D4*50*2T
0.4
2/3/4/5/6
4
50
2T
10
R0.25*2/3/4/6/8*D4*50*2T
0.5
2/3/4/6/8
4
50
2T
11
R0.3*2/3/4/6/8*D4*50*2T
0.6
2/3/4/6/8
4
50
2T
12
R0.35*3/4/6/8/10*D4*50*2T
0.7
3/4/6/8/10
4
50
2T
13
R0.4*3/4/6/8/10*D4*50*2T
0.8
3/4/6/8/10
4
50
2T
14
R0.45*3/4/6/8/10*D4*50.2T
0.9
3/4/6/8/10
4
50
2T



Two Flutes Cnc Solid Carbide End Mills Flat Micro Milling Cutter For 0.1mm Milling Cutter Tools Hard Steel 0Two Flutes Cnc Solid Carbide End Mills Flat Micro Milling Cutter For 0.1mm Milling Cutter Tools Hard Steel 1Two Flutes Cnc Solid Carbide End Mills Flat Micro Milling Cutter For 0.1mm Milling Cutter Tools Hard Steel 2

FAQ



1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.



2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.



3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.



4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.



5. What is your terms of payment?



Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
