Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | CHINA | Material: | 40Cr High Carbon Steel |
|---|---|---|---|
| Whether It Is Coated: | Uncoated | HRC: | 35-40° |
| High Light: | 40Cr High Speed Steel Insert,Countersunk High Speed Steel Insert,Alloy Tungsten Carbide Drill Bits |
||

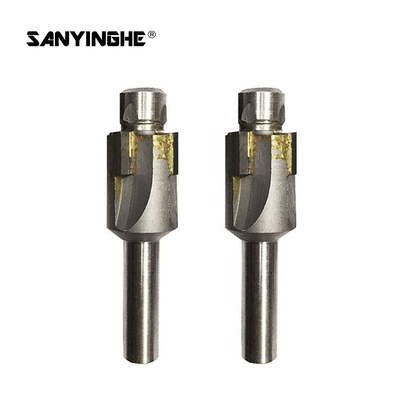

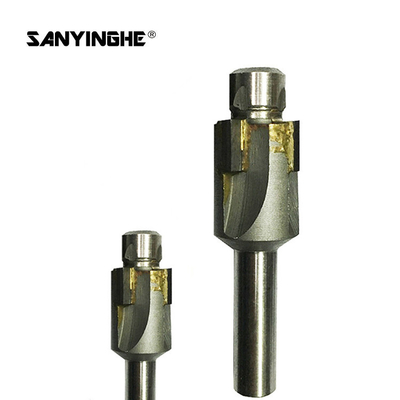

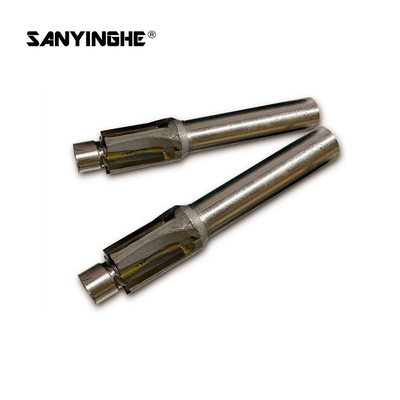

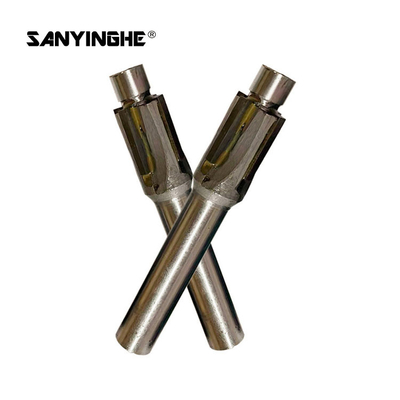

Product Description:
The tool is subjected to huge stress during the working process, especially the compression bending and impact force, which requires high strength of the joint, which is completed by the high carbon in it, and the quality is reliable and stable.
Anti-chipping design, thickened four-end blades, to achieve high tool durability, 14° rake angle design enhances the anti-chipping performance of the cutting edge.
The helical cutting edge can reduce the side cutting resistance, and the smooth cutting helps to improve the cutting accuracy. It is used for machining cast iron and low aluminum materials.
Specifications:
| Brand Name | Sanyinghe |
| Product name | Tungsten steel countersunk knife |
| Material | 40Cr high carbon steel |
| Packing | 1ps/ Plastic Box |
| Applicable materials | Aluminum/Copper/Iron |
| Blade Material | Sandblasted |
| Applicable models | Horizontal machine tools, Vertical milling machines |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
| Guide Post | Blade Diameter | Handle Length | Guide Post | Blade diameter | Handle Length |
| 5.2 | 10 | 10 | 12 | 21 | 12 |
| 6 | 12 | 12 | 12 | 22 | 12 |
| 6.2 | 11 | 10 | 12 | 30 | 12 |
| 6.7 | 12.8 | 12 | 12 | 32 | 12 |
| 8 | 14 | 12 | 14 | 21 | 12 |
| 8.2 | 14 | 12 | 14 | 24 | 12 |
| 9 | 14 | 12 | 14 | 26 | 12 |
| 9 | 15 | 12 | 16 | 25 | 12 |
| 10 | 17 | 12 | 16 | 26 | 12 |
| 10 | 18 | 12 | 16 | 30 | 12 |
| 10 | 20 | 12 | 16 | 40 | 16 |
| 10.3 | 17 | 12 | 18 | 28 | 12 |
| 11 | 18 | 12 | 18 | 36 | 16 |
| 12 | 20 | 12 | 20 | 40 | 16 |
