Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | China | Material: | HSS-E |
|---|---|---|---|
| Surface Treatment: | Cobalt-containing Titanium | Applicable Materials: | Stainless Steel/Aluminum/Iron |
Product Description:

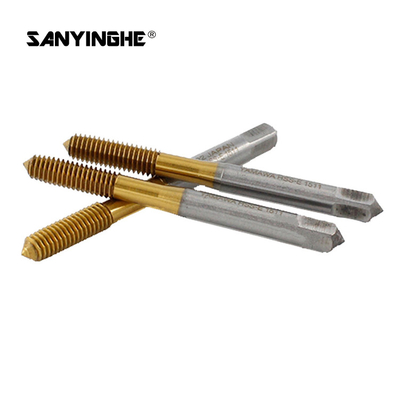

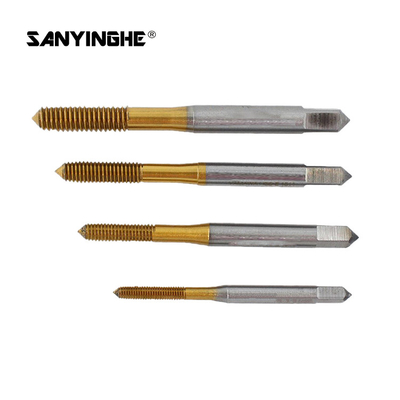

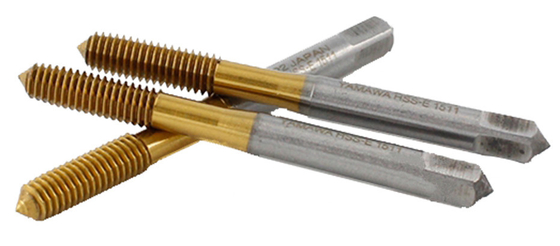

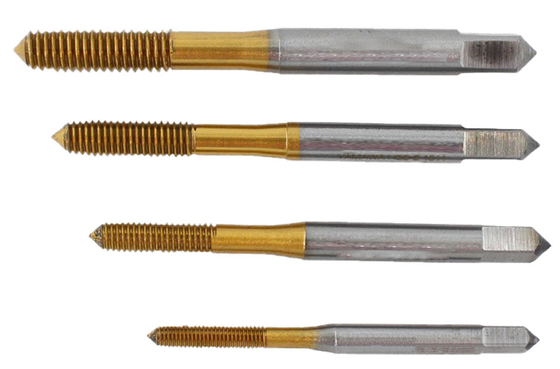

1. Titanium-plated extrusion tap, for coated steel, high-speed steel containing cobalt, more cost-effective, and better material toughness.
2. Sharp and durable: suitable for the processing of steel and non-ferrous metals and stainless steel, with high efficiency, long life and fast tapping.
3. No chips and no residues: Using the principle of plastic deformation of metal, chip-free cutting is suitable for processing materials with low hardness and strong plasticity.
4. The new cutting edge is precise and free of burrs, and the finish is greatly improved.
Specifications:
| Material | High Speed Steel |
| Packing | 1ps/ Plastic Box |
| Suitable | steel/iron/stainless steel |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
| Specification | Thread length(mm) | Full length(mm) | Shank diameter(mm) | Bottom hole diameter |
| M1*0.25 | 4 | 32 | 3 | 0.89-0.92 |
| M1.2*0.25 | 4 | 34 | 3 | 1.11-1.09 |
| M1.4*0.3 | 5 | 36 | 3 | 1.26-1.3 |
| M1.6*0.35 | 6.5 | 37 | 3 | 1.43-1.47 |
| M1.8*0.35 | 6.5 | 37 | 3 | 1.62-1.67 |
| M2*0.4 | 11 | 40 | 3 | 1.79-1.84 |
| M2.3*0.4 | 11 | 42 | 3 | 2.09-2.14 |
| M2.5*0.45 | 15 | 44 | 3 | 2.27-2.34 |
| M2.6*0.45 | 15 | 44 | 3 | 2.37-2.44 |
| M3*0.5 | 18 | 46 | 4 | 2.75-2.82 |
| M3.5*0.6 | 18 | 48 | 4 | 3.19-3.27 |
| M4*0.7 | 20 | 52 | 5 | 3.65-3.72 |
| M5*0.8 | 22 | 60 | 5.5 | 4.59-4.67 |
| M6*1 | 24 | 62 | 6 | 5.49-5.59 |
| M8*1.25 | 18 | 70 | 6.2 | 7.36-7.49 |
| M10*1.5 | 20 | 75 | 7 | 9.22-9.34 |
| M12*1.75 | 25 | 82 | 8.5 | 11.09-11.23 |
