Product Details:
Payment & Shipping Terms:
|
Features: | High Efficiency, Smooth Cutting | Blade Material: | 45 Gauge Steel |
---|---|---|---|
Surface Material: | Sandblasted | Hardness: | HRC90-92 |
Blade Diameter: | 15-60 | Machining Hardness: | 35-40 |
Shank Type: | Flat Tail Taper Shank | Applicable Equipment: | Drilling Machine |
High Light: | Sandblasted Carbide Milling Cutter,Alloy Carbide Milling Cutter,HRC90 Countersink Drill Bit For Metal |
Product Description:

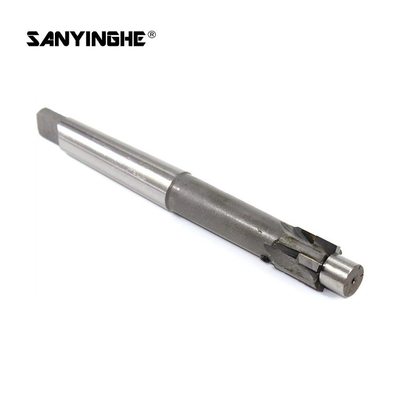

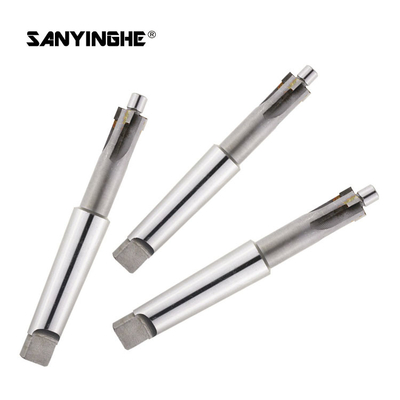

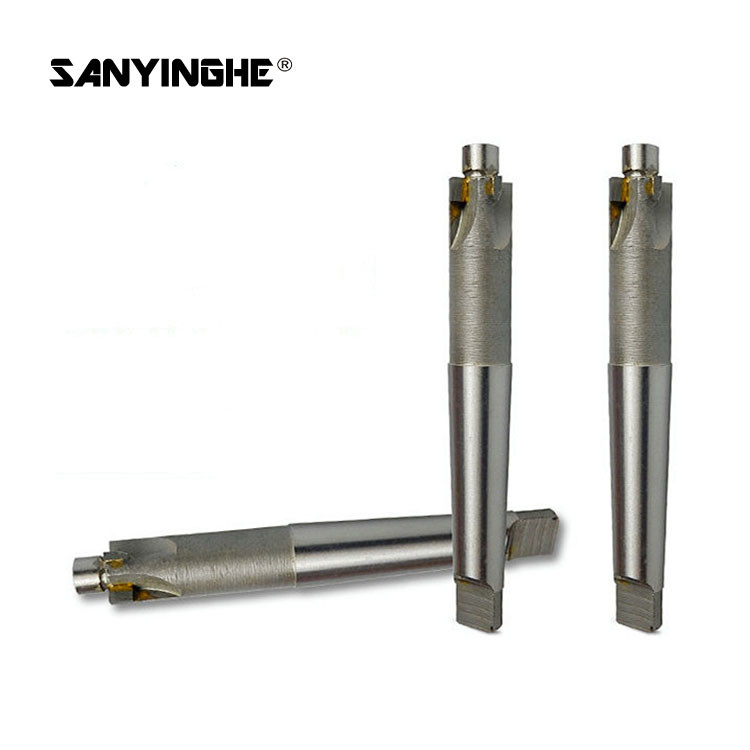

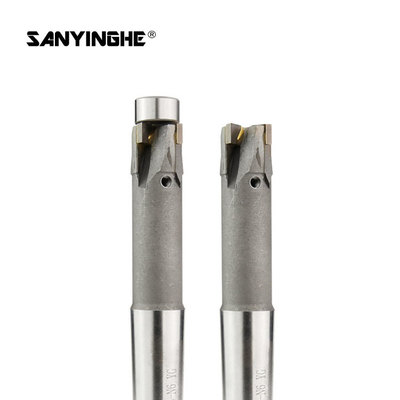

The cutter head is sharp, and the guide column can be replaced, which realizes multiple functions of one machine and reduces the cost of the cutter.
The guide post is quenched and finely ground, with high precision and strong hardness.
Special front and rear angles, the cutting force is increased by 50%+, and the alloy hardness can reach HRA≥89, meeting your high cutting requirements. The bending strength can reach ≥1800.
Spring steel heat-treated live conductors, secured with set screws. Chamfer polishing. For drilling, deburring and positioning.
Specifications:
Material | 45 gauge steel |
Packing | 1ps/ Plastic Box |
Suitable | Iron/Aluminum/Bronze/Steel |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
Type | Bore | Total length | Taper shank | Number of blades |
15 | 5 | 130 | 2 | 4 |
16 | 5 | 130 | 2 | 4 |
18 | 5 | 130 | 2 | 4 |
20 | 6 | 160 | 2 | 4 |
22 | 6 | 160 | 2 | 4 |
24 | 6 | 180 | 3 | 4 |
25 | 6 | 180 | 3 | 4 |
26 | 8 | 180 | 3 | 4 |
28 | 8 | 180 | 3 | 4 |
30 | 8 | 180 | 3 | 4 |
32 | 8 | 180 | 3 | 4 |
34 | 10 | 220 | 4 | 4 |
35 | 10 | 220 | 4 | 4 |
36 | 10 | 220 | 4 | 4 |
38 | 10 | 220 | 4 | 4 |
40 | 10 | 220 | 4 | 4 |
42 | 10 | 220 | 4 | 4 |
45 | 10 | 220 | 4 | 4 |
46 | 10 | 220 | 4 | 4 |
48 | 10 | 220 | 4 | 4 |
50 | 10 | 220 | 4 | 4 |
55 | 10 | 220 | 4 | 4 |
60 | 10 | 220 | 4 | 4 |
