Product Details:
Payment & Shipping Terms:
|
| Material: | High Speed Steel | Advantages: | High Performance/Long Life/high Quality |
|---|---|---|---|
| Type: | Countersunk Head Milling Cutter | Shank Type: | Taper Shank |
| High Light: | HSS Engraving Machine Tool,Taper Shank Engraving Machine Tool,Carbide Countersink Drill Bit |
||
Product Description:

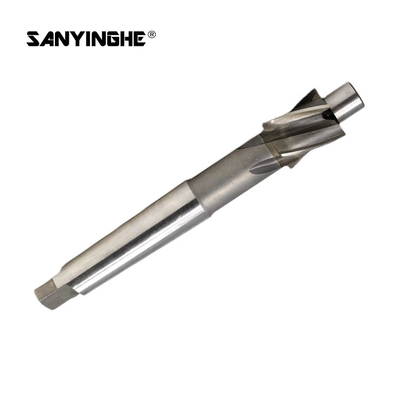

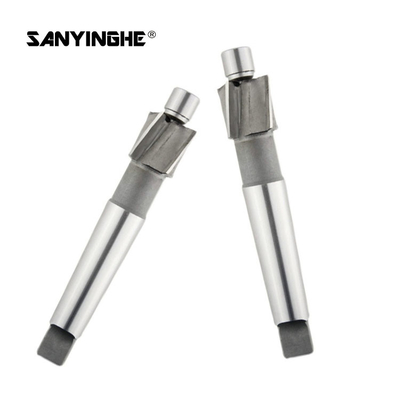

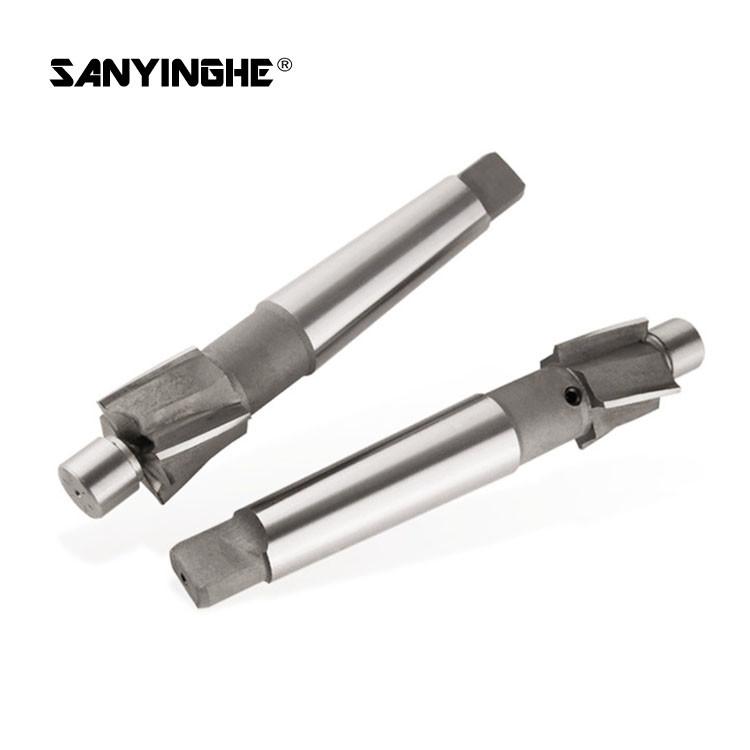

Flat bottom countersink drill with conductor, high speed steel material, thickened four-end insert, 14° rake angle design, fast milling.
HSS high-speed steel is selected, and the chip flute is finely polished. Overall polished, smooth surface.

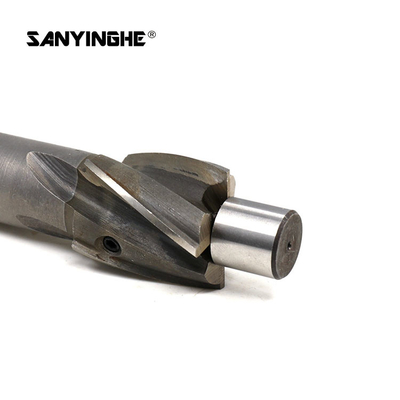

The flat head guide post and the shank concentric hole are positioned concentrically, with no difference in accuracy. Countersink milling does not stick to the knife, does not burn the knife, and is more stable. Shockproof design is more durable.
With positioning guide post, the cutting is smooth and the processing efficiency is high. Cuts are smoother and more durable.
Specifications:
| Material | High Speed Steel |
| Packing | 1ps/ Plastic Box |
| Suitable | Aluminum/Copper/Iron/Die Steel |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
| Specification | total length | Applicable screws | Specification | total length | Applicable screws |
| 15*6.6 | 132 | M6 | 36*20 | 190 | M18 |
| 15*9 | 132 | M8 | 36*22 | 190 | M20 |
| 18*9 | 140 | M10 | 38*22 | 190 | M18 |
| 18*11 | 140 | M12 | 38*24 | 190 | M22 |
| 20*9 | 140 | M10 | 40*22 | 190 | M20 |
| 20*11 | 140 | M12 | 40*24 | 190 | M22 |
| 22*14 | 150 | M12 | 42*22 | 236 | M20 |
| 24*11 | 150 | M14 | 42*24 | 236 | M22 |
| 24*14 | 150 | M12 | 42*26 | 236 | M24 |
| 26*14 | 150 | M16 | 46*24 | 236 | M22 |
| 26*16 | 150 | M14 | 46*30 | 236 | M27 |
| 28*14 | 150 | M12 | 48*26 | 236 | M24 |
| 28*18 | 150 | M16 | 48*30 | 236 | M27 |
| 30*16 | 150 | M14 | 48*33 | 250 | M30 |
| 30*18 | 150 | M16 | 50*26 | 250 | M24 |
| 32*16 | 190 | M14 | 55*30 | 250 | M27 |
| 32*18 | 190 | M16 | 55*33 | 250 | M30 |
| 32*20 | 190 | M18 | 60*33 | 250 | M30 |
| 34*18 | 190 | M16 | 60*39 | 250 | M36 |
