Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | China | Advantages: | High Rigidity, High Vibration Resistance, High Quality |
|---|---|---|---|
| Type: | Flat End Milling Cutter | Material: | HSS |
| High Light: | Flat Bottom Carbide Milling Cutter,Guide Column Carbide Milling Cutter,HSS Countersink Drill Bit Set |
||
Product Description:

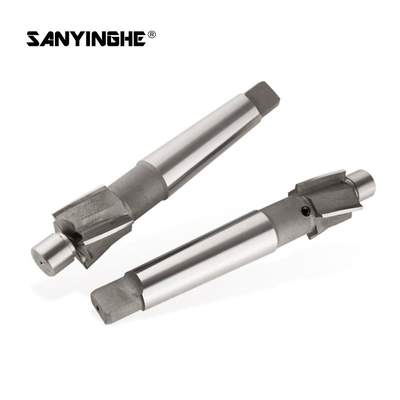

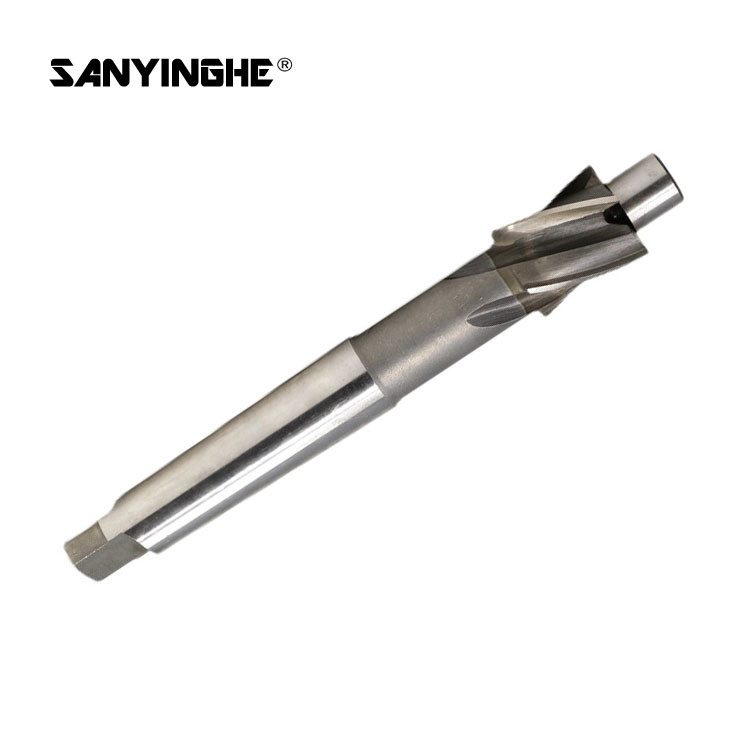

Countersink drill with conductor, HSS raw material, fast milling, finely polished flutes.

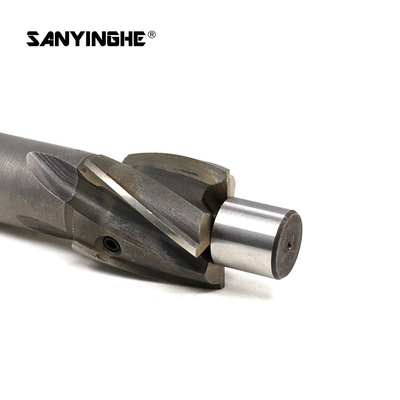

The flat head guide post and the shank concentric hole are positioned concentrically, with no difference in accuracy. Will not stick to the knife, will not burn the knife, more stable. Shockproof design is more durable.
With positioning guide post, high processing efficiency. Thickened four-end blade for smoother cutting and more durability.
Better matching of milling, with ensuring chip space to adopt large core diameter design for greatly enhancing the rigidity and vibration resistance of the tool, reduce tool breakage, and extend the service life.
Specifications:
| Material | High Speed Steel |
| Packing | 1ps/ Plastic Box |
| Suitable | Aluminum/Copper/Iron/Die Steel |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
| Specification | total length | Applicable screws | Specification | total length | Applicable screws |
| 15*6.6 | 132 | M6 | 36*20 | 190 | M18 |
| 15*9 | 132 | M8 | 36*22 | 190 | M20 |
| 18*9 | 140 | M10 | 38*22 | 190 | M18 |
| 18*11 | 140 | M12 | 38*24 | 190 | M22 |
| 20*9 | 140 | M10 | 40*22 | 190 | M20 |
| 20*11 | 140 | M12 | 40*24 | 190 | M22 |
| 22*14 | 150 | M12 | 42*22 | 236 | M20 |
| 24*11 | 150 | M14 | 42*24 | 236 | M22 |
| 24*14 | 150 | M12 | 42*26 | 236 | M24 |
| 26*14 | 150 | M16 | 46*24 | 236 | M22 |
| 26*16 | 150 | M14 | 46*30 | 236 | M27 |
| 28*14 | 150 | M12 | 48*26 | 236 | M24 |
| 28*18 | 150 | M16 | 48*30 | 236 | M27 |
| 30*16 | 150 | M14 | 48*33 | 250 | M30 |
| 30*18 | 150 | M16 | 50*26 | 250 | M24 |
| 32*16 | 190 | M14 | 55*30 | 250 | M27 |
| 32*18 | 190 | M16 | 55*33 | 250 | M30 |
| 32*20 | 190 | M18 | 60*33 | 250 | M30 |
| 34*18 | 190 | M16 | 60*39 | 250 | M36 |
