Product Details:
Payment & Shipping Terms:
|
| Material: | Tungsten Carbide | Machine Type: | Milling Machine |
|---|---|---|---|
| Suitable For: | Copper, Cast Iron, Carbon Steel, Mould Steel Etc | Usage: | Metal Machining |
| High Light: | 3 Flute CNC Aluminium Cutting Tool,Tungsten Carbide CNC Aluminium Cutting Tool,20mm Thread Cutting End Mill |
||
PRODUCT DESCRIPTION
1.The large core diameter is more stable.

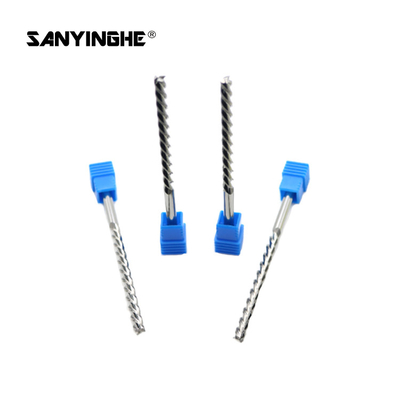

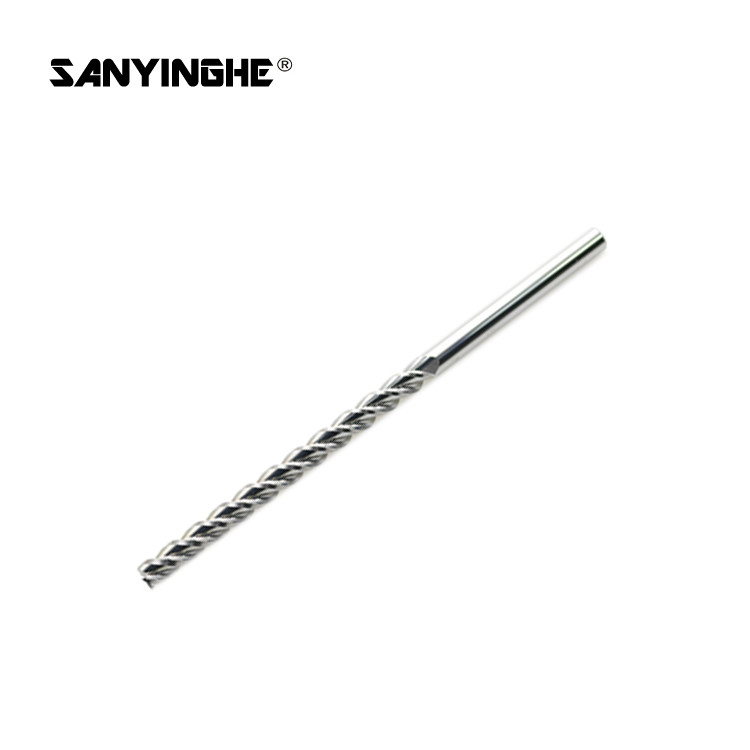

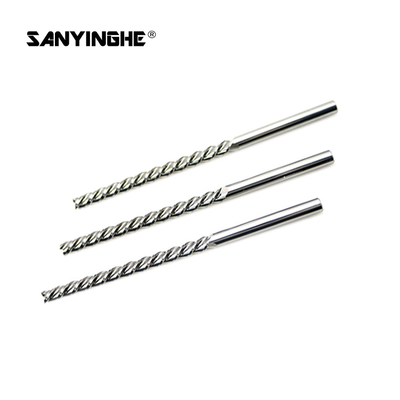

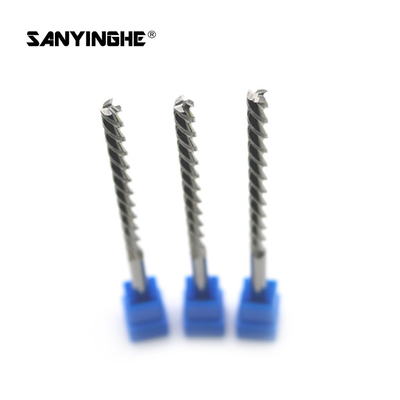

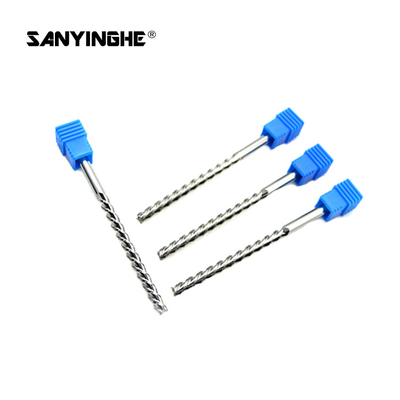

Large Chipremoval Groove Cutting Tools 3 Flute Tungsten Carbide Square End Mills For Cutting Aluminum Alloy
2.Bottom chamfering for easy handing.
Cutting Tools 3 Flute Tungsten Carbide Square End Mills For Cutting Aluminum Alloy
3.Tungsten carbide Material
High hardness,not easy to rust,high cost performance.
4.Cutting Tools 3 Flute Tungsten Carbide Square End Mills For Cutting Aluminum Alloy
5.Cut a variety of materials, and can customize the milling cutter according to the needs of high-speed steel, alloy or ceramic.
|
SPECIFICATIONS
|
Cutting Diameter
|
Cutting Length
|
A.O.L
|
A.O.L
|
Flute
|
|
1.0×3×4D×50L×3F
|
1
|
3
|
4
|
50
|
3F
|
|
1.5×4.5×4D×50L×3F
|
1.5
|
4.5
|
4
|
50
|
3F
|
|
2.0×6.0×4D×50L×3F
|
2
|
6
|
4
|
50
|
3F
|
|
2.5×7.5×4D×50L×3F
|
2.5
|
7.5
|
4
|
50
|
3F
|
|
3.0×9×4D×50L×3F
|
3
|
9
|
4
|
50
|
3F
|
|
3.0×9×3D×50L×3F
|
3
|
9
|
3
|
50
|
3F
|
|
3.0×12×3D×75L×3F
|
3
|
12
|
3
|
75
|
3F
|
|
3.0×15×3D×100L×3F
|
3
|
15
|
3
|
100
|
3F
|
|
3.5×10.5×4D×50L×3F
|
3.5
|
10.5
|
4
|
50
|
3F
|
|
4.0×12×4D×50L×3F
|
4
|
12
|
4
|
50
|
3F
|
|
4.0×16×4D×75L×3F
|
4
|
16
|
4
|
75
|
3F
|
|
4.0×20×4D×100L×3F
|
4
|
20
|
4
|
100
|
3F
|
|
5.0×15×5D×50L×3F
|
5
|
15
|
5
|
50
|
3F
|
|
5.0×20×5D×75L×3F
|
5
|
20
|
5
|
75
|
3F
|
|
5.0×25×5D×100L×3F
|
5
|
25
|
5
|
100
|
3F
|
|
5.0×15×6D×50L×3F
|
5
|
15
|
6
|
50
|
3F
|
|
6.0×18×6D×50L×3F
|
6
|
18
|
6
|
50
|
3F
|
|
6.0×24×6D×75L×3F
|
6
|
24
|
6
|
75
|
3F
|
|
6.0×30×6D×100L×3F
|
6
|
30
|
6
|
100
|
3F
|
|
8.0×24×8D×60L×3F
|
8
|
24
|
8
|
60
|
3F
|
|
8.0×30×8D×75L×3F
|
8
|
30
|
8
|
75
|
3F
|
|
8.0×35×8D×100L×3F
|
8
|
35
|
8
|
100
|
3F
|
|
9.0×27×10D×75L×3F
|
9
|
27
|
10
|
75
|
3F
|
|
10.0×30×10D×75L×3F
|
10
|
30
|
10
|
75
|
3F
|
|
10.0×40×10D×100L×3F
|
10
|
40
|
10
|
100
|
3F
|
|
12.0×35×12D×75L×3F
|
12
|
35
|
12
|
75
|
3F
|
|
12.0×45×12D×100L×3F
|
12
|
45
|
12
|
100
|
3F
|
|
14.0×45×14D×100L×3F
|
14
|
45
|
14
|
100
|
3F
|
|
16.0×45×16D×100L×3F
|
16
|
45
|
16
|
100
|
3F
|
|
18.0×45×18D×100L×3F
|
18
|
45
|
18
|
100
|
3F
|
|
20.0×45×20D×100L×3F
|
20
|
45
|
20
|
100
|
3F
|
|
6.0×45×6D×150L×3F
|
6
|
45
|
6
|
150
|
3F
|
|
8.0×50×8D×150L×3F
|
8
|
50
|
8
|
150
|
3F
|
|
10.0×60×10D×150L×3F
|
10
|
60
|
10
|
150
|
3F
|
|
12.0×60×12D×150L×3F
|
12
|
60
|
12
|
150
|
3F
|
|
14.0×70×14D×150L×3F
|
14
|
45
|
14
|
150
|
3F
|
|
16.0×75×16D×150L×3F
|
16
|
45
|
16
|
150
|
3F
|
|
18.0×75×18D×150L×3F
|
18
|
45
|
18
|
150
|
3F
|
|
20.0×75×20D×150L×3F
|
20
|
45
|
20
|
150
|
3F
|
|
25.0×45×25D×100L×3F
|
25
|
45
|
25
|
100
|
3F
|
| Parameters Of Milling Cutter | |||
| Customized support: | Flat End Mill For Aluminium | Flute: | 3,4,5,6,Customize |
| Coating: | Uncoated,Customize | Material: | Tungsten carbide,Customize |
| Precision: | High Precision | Controlling Mode: | CNC |
| HRA: | 91.2-93.8 | RPM: | <8000RPM |
| Regular Size Of Milling Cutter (Customize) | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 3 | 4 | 3 |
| 4 | 75 | 16 | 4 | 3 |
| 6 | 100 | 30 | 6 | 3 |
| 10 | 100 | 40 | 10 | 3 |
| 16 | 100 | 45 | 16 | 3 |
| 20 | 100 | 45 | 20 | 3 |
| To map customization. Welcome to consult | ||||
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

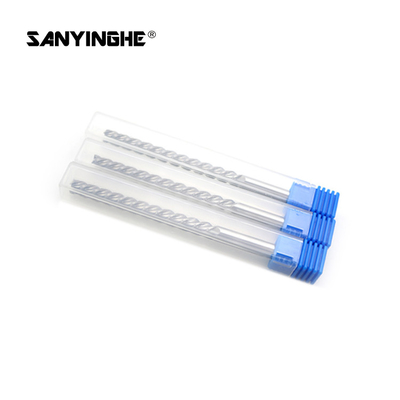

4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
