Solid HRC55 2 4 Flute Tiny Carbide Ball Nose End Mills

Solid HRC55 2 4 Flute Tiny Carbide Ball Nose End Mills
Solid HRC55 2 4 Flute Tiny Carbide Ball Nose End Mills Solid HRC55 2 4 Flute Tiny Carbide Ball Nose End Mills Solid HRC55 2 4 Flute Tiny Carbide Ball Nose End Mills Solid HRC55 2 4 Flute Tiny Carbide Ball Nose End Mills Solid HRC55 2 4 Flute Tiny Carbide Ball Nose End Mills

Large Image :  Solid HRC55 2 4 Flute Tiny Carbide Ball Nose End Mills

Product Details:
Place of Origin: Zhuzhou, China
Brand Name: Sanyinghe
Certification: ISO
Model Number: Customize
Payment & Shipping Terms:
Minimum Order Quantity: 3PCS
Price: Negotiation
Packaging Details: 1PCS/ PVC Packing, 10PCS PVC Packing
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8000Pcs/Month
Detailed Product Description
Material: Carbide Type: End Mill, Milling Cutter
HRC: 45/50/55/60/63 Workpiece: Alloy Steel, Harden Material, Cast Ironetc
Flute Length: 2 Times Of Cutting Edge Diameter
High Light:

Tiny Carbide Ball Nose End Mills

,

4 Flute Carbide Ball Nose End Mills

,

Solid 2 flute ball end mill

Solid Carbide HRC55 Coated 2 / 4 Flute Tiny Ball Bose End Mills Cnc Milling Cutter For Stainless Steel,Aluminum

Product Description:



1. Hardness:HRC45/50/55/60/65
2. Flutes:2 flutes or 4 flutes
3. Helix Angle: 35 degree
4. Centered Cutting: Yes
5. Type: Square End Mill / Flat end mill / Metal cutting tool
6. Workpiece material: Steel, mould steel, low alloy, hardened steel, staninless steel, alloy steel
7. Coating:TiAlN
8. Tool body material:Tungsten solid carbide
9. Color: Black, yellow



Product Name

2 Flutes End Milling Cutter

Product Type

Ball nose End Mill

Coating

Purple Nano coating

Material

Tungsten Carbide

Size

2~20mm

HRC

55-65

Helix Angle

35 °

Flute

2-4

Certification

ISO

Tolerance

D≤12 0~0.02

Suitable For

Alloy steel ,High hardness steel,Aluminum alloy,copper alloy



1.Work for hardness: HRC45,HRC55,HRC60
2.Coating: TiAlN,Nano
3.Material Micro Grain Carbide, Ultra Micro Carbide
4.Helix Angle:  35°
5.Flutes: 2 Flute
6.Cutting Diameter: 1mm
7.Machining Director: Profile, Ball nose slot
8.Suitable for: Hardened steel,pre-hardened steel,cast iron
9.Application: Tiny diameter end mills can fully display high speed and high precision performances of machining center,often used for machining of precision components such as electronic part etc.





Specification

Tool Specifications (mm)
Rangle
Blade diameter
Blade length
Number of blades
Shank diameter
Full length
D1.0R0.5-2L-2F-4D-50L
0.5
1.0
2
2
4
50
D1.5R0.75-3L-2F-4D-50L
0.75
1.5
3
2
4
50
D2.0R1-4L-2F-4D-50L
1
2
4
2
4
50
D2.5R1.25-5L-2F-4D-50L
1.25
2.5
5
2
4
50
D3R1.5-6L-2F-4D-50L
1.5
3
6
2
4
50
D3R1.5-6L-2F-3D-50L
1.5
3
6
2
3
50
D3.5R1.75-7L-2F-4D-50L
1.75
3.5
7
2
4
50
D4R2-8L-2F-4D-50L
2
4
8
2
4
50
D5R2.5-10L-2F-6D-50L
2.5
5
10
2
6
50
D5R2.5-10L-2F-5D-50L
2.5
5
10
2
5
50
D6R3-12L-2F-6D-50L
3
6
12
2
6
50
D8R4-16L-2F-8D-60L
4
8
16
2
8
60
D10R5-20L-2F-10D-75L
5
10
20
2
10
75
D12R6-24L-2F-12D-75L
6
12
24
2
12
75
D3R1.5-6L-2F-3D-75L
1.5
3
6
2
3
75
D4R2-10L-2F-4D-75L
2
4
10
2
4
75
D4R2-10L-2F-4D-100L
2
4
10
2
4
100
D5R2.5-10L-2F-5D-75L
2.5
5
10
2
5
75
D5R2.5-10L-2F-5D-100L
2.5
5
10
2
5
100
D6R3-14L-2F-6D-75L
3
6
14
2
6
75
D6R3-16L-2F-6D-100L
3
6
16
2
6
100
D6R3-20L-2F-6D-150L
3
6
20
2
6
150
D8R4-18L-2F-8D-75L
4
8
18
2
8
75
D8R4-20L-2F-8D-100L
4
8
20
2
8
100
D8R4-22L-2F-8D-150L
4
8
22
2
8
150
D10R5-24L-2F-10D-100L
5
10
24
2
10
100
D10R5-26L-2F-10D-150L
5
10
26
2
10
150
D12R6-26L-2F-12D-100L
6
12
26
2
12
100
D12R6-30L-2F-12D-150L
6
12
30
2
12
150
D14R7-28L-2F-14D-100L
7
14
28
2
14
100
D16R8-32L-2F-16D-100L
8
16
32
2
16
100
D16R8-36L-2F-16D-150L
8
16
36
2
16
150
D20R10-36L-2F-20D-100L
10
20
36
2
20
100
D20R10-40L-2F-20D-150L
10
20
40
2
20
150

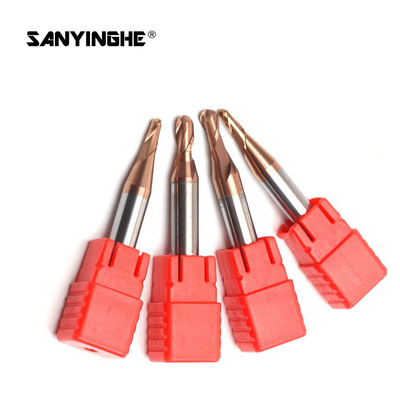

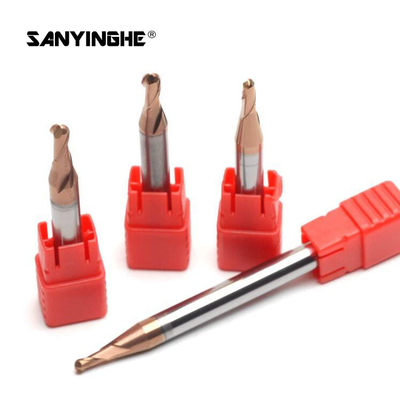

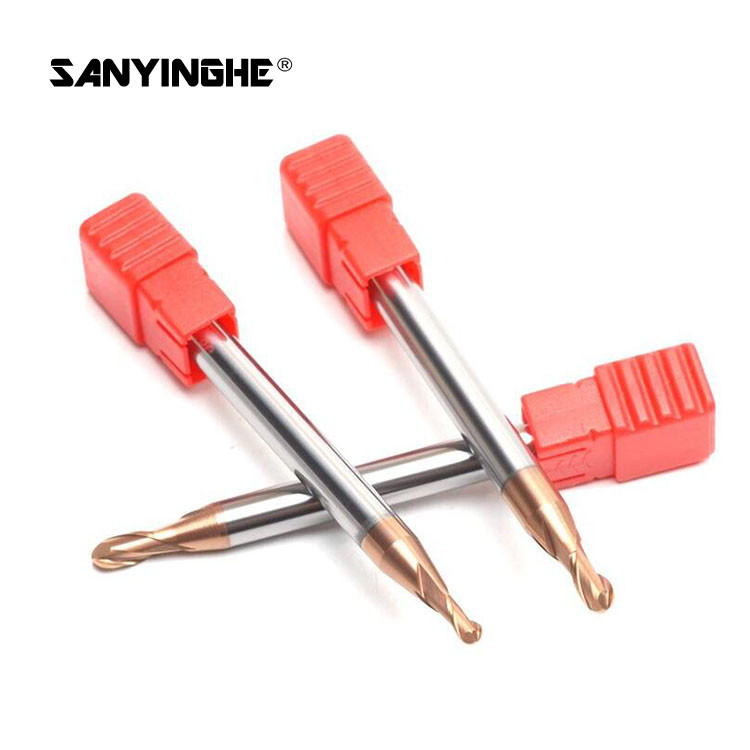

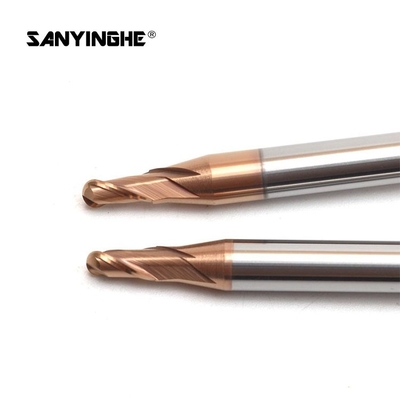

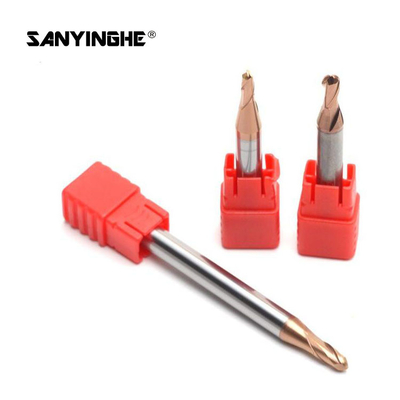

Solid HRC55 2 4 Flute Tiny Carbide Ball Nose End Mills 0Solid HRC55 2 4 Flute Tiny Carbide Ball Nose End Mills 1Solid HRC55 2 4 Flute Tiny Carbide Ball Nose End Mills 2



FAQ







1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.



2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.





3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.





4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.



5. What is your terms of payment?



Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
