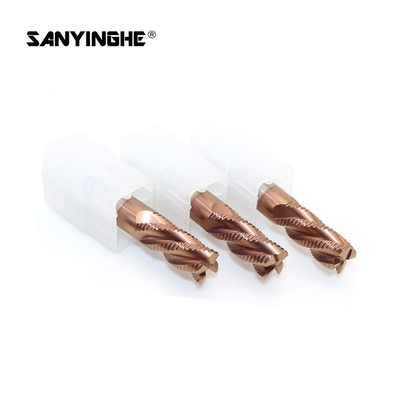

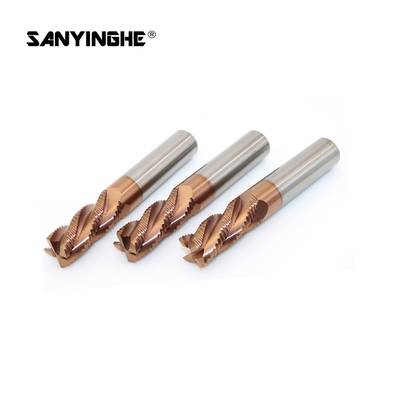

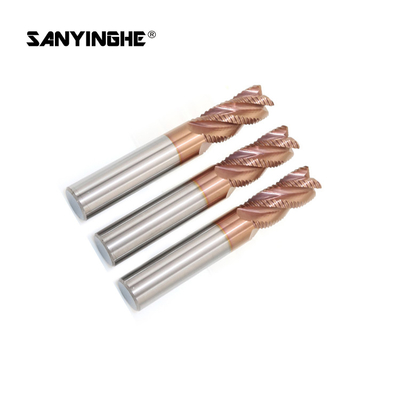

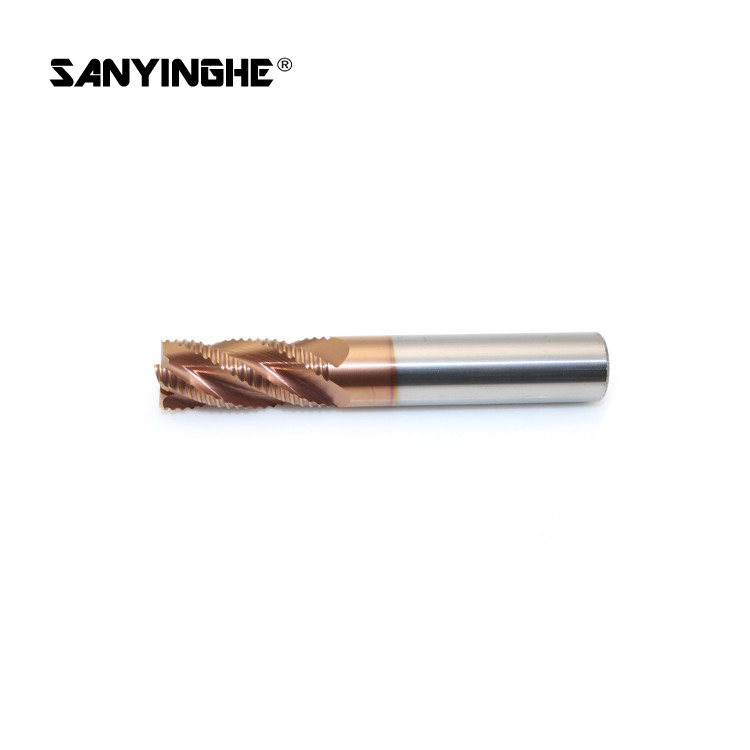

Coated Carbide Roughing End Mills 3 4 Flute CNC Machining Thread Milling Tool

Coated Carbide Roughing End Mills 3 4 Flute CNC Machining Thread Milling Tool
Coated Carbide Roughing End Mills 3 4 Flute CNC Machining Thread Milling Tool Coated Carbide Roughing End Mills 3 4 Flute CNC Machining Thread Milling Tool Coated Carbide Roughing End Mills 3 4 Flute CNC Machining Thread Milling Tool Coated Carbide Roughing End Mills 3 4 Flute CNC Machining Thread Milling Tool Coated Carbide Roughing End Mills 3 4 Flute CNC Machining Thread Milling Tool

Large Image :  Coated Carbide Roughing End Mills 3 4 Flute CNC Machining Thread Milling Tool

Product Details:
Place of Origin: Zhuzhou,China
Brand Name: Sanyinghe
Certification: ISO
Model Number: D4/6/8/10/12/16/20mm
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: 1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs/month
Detailed Product Description
Material: Tungsten Carbide Usage: General High Speed Cutting
Controlling Mode: CNC Tooling System Advantages: Long Life,High Precision
Type: Milling Tools
High Light:

Coated Carbide Roughing End Mills

,

4 Flute Carbide Roughing End Mills

,

CNC Thread Milling Tool

Rough End Mill Coated 3/4 Flute Roughing Machining CNC Milling End Mill Cutter CNC Thread Milling Machining Tool



PRODUCT DESCRIPTION



Advantage :

  1. Work material: carbide steel, alloy steel, cast iron, copper, mould steel,etc.
  2. 100% original tungsten, without recycle parts. Wc90%, Co10%, more cobalt will make end mills more crisp.
  3. Long Life High Precision high Efficiency.
  4. Suitable for finishing,can achieve the mirror effect.
  5. ALTIN coating , increase surface gloss,and prolonging life.
  6. 100% quality guarantee (ISO9001)
  7. Effective to avoid chatting ,allowing for oustanding milling performance.



Product Name

Carbide End Mills
Material Carbide
End Tooth Types Square/Ball nose/Coner Radius/Roughing
Machining operation Side face, Profile, Step shoulder, Straight slot
Processing Objects Steel,Hardened steel, Stainless steel, Aluminum
HRC HRC45,HRC50,HRC55,HRC60,HRC65,HRC68



Item Grade
HRC45
(YG10X )
HRC55
(YL10.2 & WF25)
HRC60
(Germany K44 &K40)
HRC65
(Sandvik H10F)
Details
Grain size 0.7um
Co10%
Flexural strength
3320N/mm2
Grain size 0.6um
Co10%
Flexural strength 4000N/mm2
Grain size 0.5um
Co12%
Flexural strength
4300N/mm2
Grain size 0.5um
Co10%
Flexural strength 4300N/mm2
specifications
D1
C
D
L
Φ4*50
1
10
4
50
Φ5/Φ6*50
5
13
6
50
Φ8*60
8
20
8
60
Φ10*75
10
25
10
75
Φ12*75
12
30
12
75
Φ12*100
12
45
12
100
Φ14*100
14
45
14
100
Φ16*100
16
45
16
100
Φ18*100
18
45
18
100
Φ20*100
20
45
20
100

Coated Carbide Roughing End Mills 3 4 Flute CNC Machining Thread Milling Tool 0Coated Carbide Roughing End Mills 3 4 Flute CNC Machining Thread Milling Tool 1Coated Carbide Roughing End Mills 3 4 Flute CNC Machining Thread Milling Tool 2



FAQ



1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.



2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.



3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.



4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.



5. What is your terms of payment?



Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
