Product Details:
Payment & Shipping Terms:
|

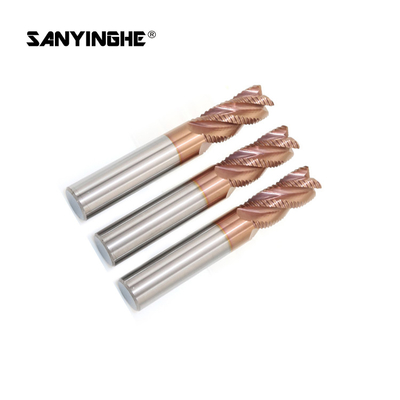

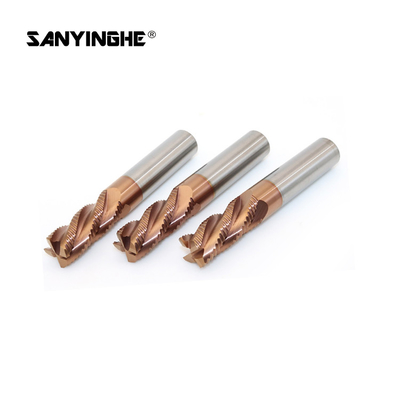

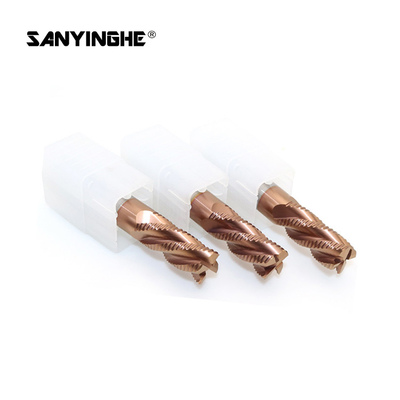

| Material: | Carbide, Tungsten Carbide | Type: | Roughing Milling Cutter |
|---|---|---|---|
| Workpiece: | Hardened Steel, Cast Iron, Etc. | Usage: | High Speed Cutting |
| Coating: | AlTiN/TiAlN, Non-coating | ||
| High Light: | Hard Milling Carbide Roughing End Mills,HRC45Carbide Roughing End Mills,4 Flute Cutter Tool |
||
PRODUCT DESCRIPTION
1.Range of application: use for ordinary stainless steel, ordinary mould steel, Hardened common steel, cast iron, copper, alloy steel with high effective process. Suitable for processing material with hardness below HRC65.

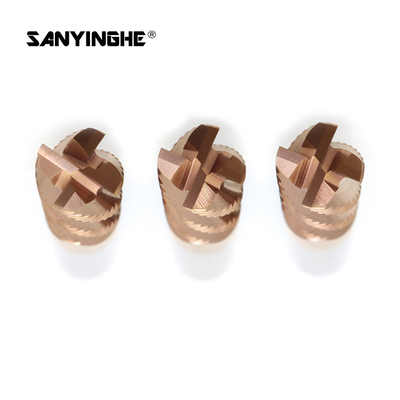

2.Structure of cutting tools : The sharp cutting matched with the good hardness ,Arc relief angle makes tool better wear-resistance, flat relief angle makes tool sharper. Cutters with two kinds of relief angle, cutting process will be faster, and tools will be longer life. Cross-center of flute top make drilling and milling better.
3.Coating of cutting tools: ALTIN coating, adopted advanced technology and equipement, Not only has high temperature oxidation resistance (800 °C), but also can achieve best on the condition of dry machining or high speed cutting.Here are the specification of the our corner radius cutting tool for your reference.
4.Series of Product : Square end mill, Ball nose end mills, Corner radius cutting tools, Roughing end mill, Long neck short flute end mill,etc. can be finish machining of products’ surface.
| Product Name | Tungsten carbide End Mill, Cnc Milling Cutter |
| Workpiece Material | Carbon Steel/ Alloy Steel/Grey Cast Iron/ Nodular Cast Iron |
| Application | Side Face/ Step Shoulder/ Straight Slot /Deep Slot |
| Usage | High speed cutting |
| Controlling Mode | CNC |
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25 | K44 & K40 | H10F |
|
Grain Size:0.7um 3320N/mm2 |
Grain Size:0.6um 4000N/mm2 |
Grain Size:0.5um 4300N/mm2 |
Grain Size:0.5um 4300N/mm2 |
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
