Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | CHINA | Material: | 40Cr High Carbon Steel |
|---|---|---|---|
| Whether It Is Coated: | Uncoated | Advantages: | Not Easy To Break, Super Wear-resistant |
| High Light: | 40Cr CNC End Mill,High Carbon Steel CNC End Mill,Metric Countersink Drill Bit |
||
Product Description:
The milling cutter is not easy to break: it is made of ultra-fine particles (the particle size reaches 0.4, the smaller the particle size, the tighter the matrix structure), and the carbonized load and carbonized saw are optimized in the material.
The content of cobalt CO is increased, the toughness is significantly increased, the precision of the milling cutter is guaranteed, the cutting edge is sharp, the chip removal is smooth, and the iron filings are not easy to accumulate.
Super wear resistance: The coating adopts titanium aluminum nitride (TIALN) nano-coating with good thermal conductivity, and the heat energy is not easily conducted on the tool body during processing, which makes the wear resistance of the tool significantly enhanced.
Specifications:
| Brand Name | Sanyinghe |

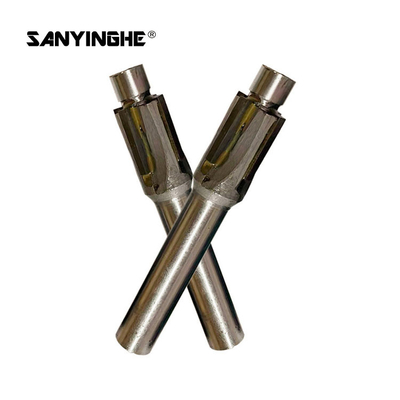

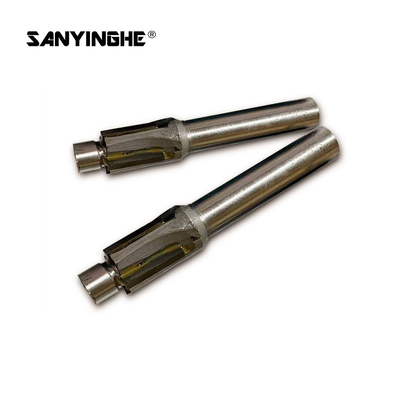

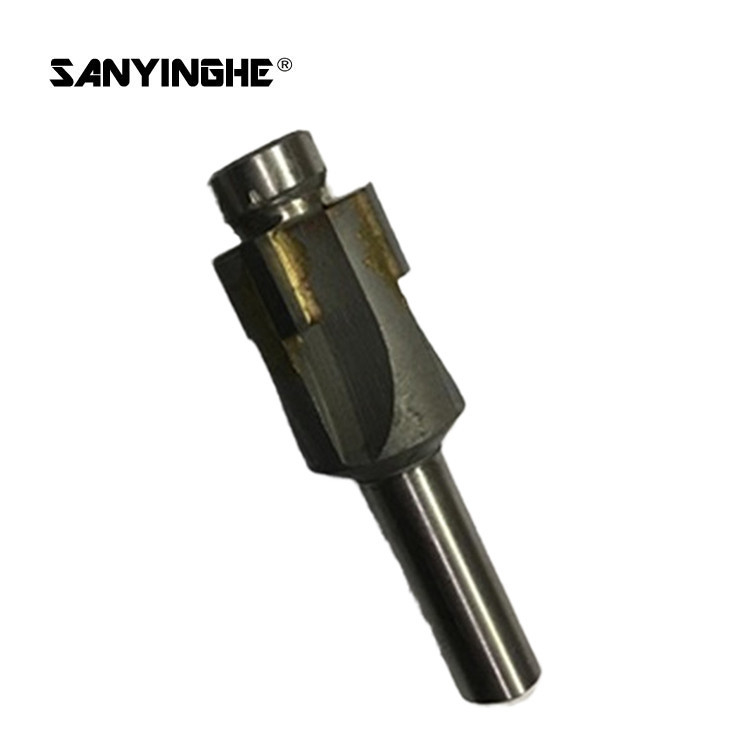

| Product name | Tungsten steel countersunk knife |
| Material | 40Cr high carbon steel |
| Packing | 1ps/ Plastic Box |
| Applicable materials | Aluminum/Copper/Iron |
| Blade Material | Sandblasted |
| Applicable models | Horizontal machine tools, Vertical milling machines |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
| Guide Post | Blade Diameter | Handle Length | Guide Post | Blade diameter | Handle Length |
| 5.2 | 10 | 10 | 12 | 21 | 12 |
| 6 | 12 | 12 | 12 | 22 | 12 |
| 6.2 | 11 | 10 | 12 | 30 | 12 |
| 6.7 | 12.8 | 12 | 12 | 32 | 12 |
| 8 | 14 | 12 | 14 | 21 | 12 |
| 8.2 | 14 | 12 | 14 | 24 | 12 |
| 9 | 14 | 12 | 14 | 26 | 12 |
| 9 | 15 | 12 | 16 | 25 | 12 |
| 10 | 17 | 12 | 16 | 26 | 12 |
| 10 | 18 | 12 | 16 | 30 | 12 |
| 10 | 20 | 12 | 16 | 40 | 16 |
| 10.3 | 17 | 12 | 18 | 28 | 12 |
| 11 | 18 | 12 | 18 | 36 | 16 |
| 12 | 20 | 12 | 20 | 40 | 16 |
