Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | China | Material: | HSS-E |
|---|---|---|---|
| Advantage: | High Temperature Resistance / High Precision | Applicable Materials: | Stainless Steel/Alloy Steel/Carbon Steel |

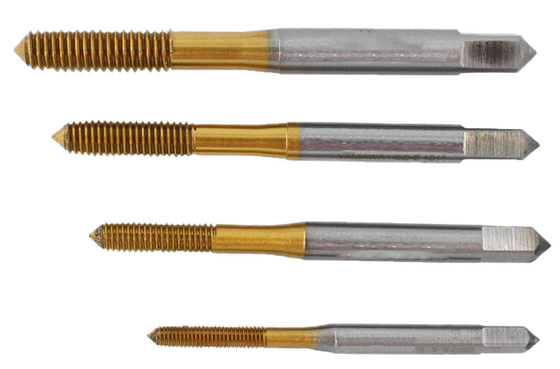

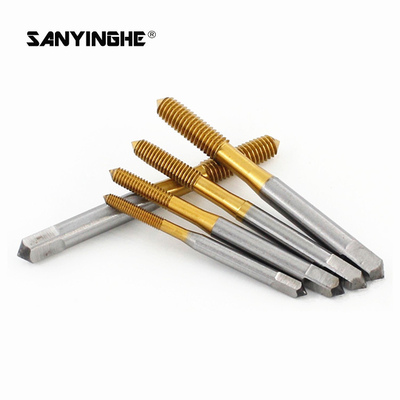

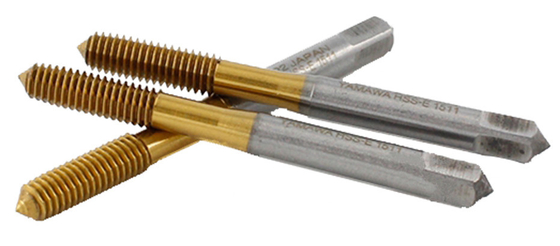

Product Description:
1. High precision: pointed through holes, sharp edges, precise cutting, smoother cutting of the smooth bar body, high-precision shank, and firm installation.
2. High temperature resistance: The working temperature of the titanium coating can reach 500°, which can significantly improve the heat resistance and solubility of the tap.
3. The extrusion tap is used for the processing of through holes and blind holes. It has the advantages of high strength, and the tap is not easy to break, which can improve the strength of the processed thread.
4. It is more suitable for materials with ductility processing. Threads processed with extrusion taps are characterized by strong thread strength and small errors in effective diameter.
Specifications:
| Material | High Speed Steel |

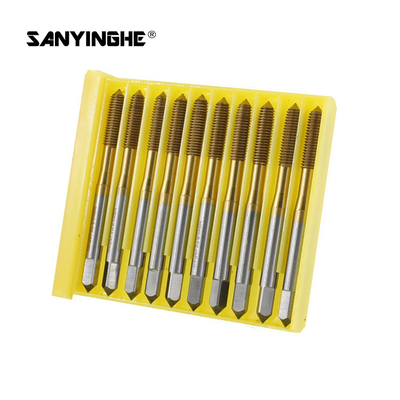

| Packing | 1ps/ Plastic Box |
| Suitable | steel/iron/stainless steel |
| Applicable tools | Tapping Press/Drilling Press/Machining Center |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
| Specification | Thread length(mm) | Full length(mm) | Shank diameter(mm) | Bottom hole diameter |
| M1*0.25 | 4 | 32 | 3 | 0.89-0.92 |
| M1.2*0.25 | 4 | 34 | 3 | 1.11-1.09 |
| M1.4*0.3 | 5 | 36 | 3 | 1.26-1.3 |
| M1.6*0.35 | 6.5 | 37 | 3 | 1.43-1.47 |
| M1.8*0.35 | 6.5 | 37 | 3 | 1.62-1.67 |
| M2*0.4 | 11 | 40 | 3 | 1.79-1.84 |
| M2.3*0.4 | 11 | 42 | 3 | 2.09-2.14 |
| M2.5*0.45 | 15 | 44 | 3 | 2.27-2.34 |
| M2.6*0.45 | 15 | 44 | 3 | 2.37-2.44 |
| M3*0.5 | 18 | 46 | 4 | 2.75-2.82 |
| M3.5*0.6 | 18 | 48 | 4 | 3.19-3.27 |
| M4*0.7 | 20 | 52 | 5 | 3.65-3.72 |
| M5*0.8 | 22 | 60 | 5.5 | 4.59-4.67 |
| M6*1 | 24 | 62 | 6 | 5.49-5.59 |
| M8*1.25 | 18 | 70 | 6.2 | 7.36-7.49 |
| M10*1.5 | 20 | 75 | 7 | 9.22-9.34 |
| M12*1.75 | 25 | 82 | 8.5 | 11.09-11.23 |
