Product Details:
Payment & Shipping Terms:
|
| Material: | Tungsten Carbide | Coating: | AlTiN, TiAIN, TiN, Nano Bule |
|---|---|---|---|
| Name: | End Mill, Square/ Flatten End Mill | Hrc: | 45/55/60/65 |
| High Light: | AlTiN Solid Carbide Flat End Mill,CNC Solid Carbide Flat End Mill,20mm tungsten carbide milling cutters |
||
PRODUCT DESCRIPTION
1.Solid carbide mill finish that is suitable for metal options like aluminum, non-ferrous, non-metallic metal
2.Precision engineered flute design that provides for superior chip removal at high feed rates
3.Allows for achieving lower cutting forces
4.Ehanced balance and finish support
5.Helps in enhancing control as well as in bringing reduction in chatter
6.Suitable for Iron, Cast iron, Pre-hardened steel, Satinless Steel, Hardened Steel under hardness
|

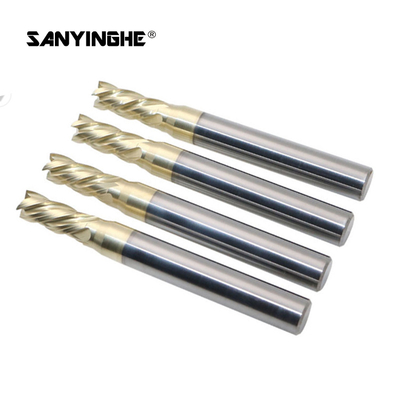

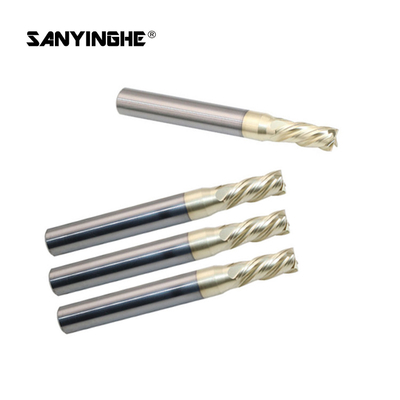

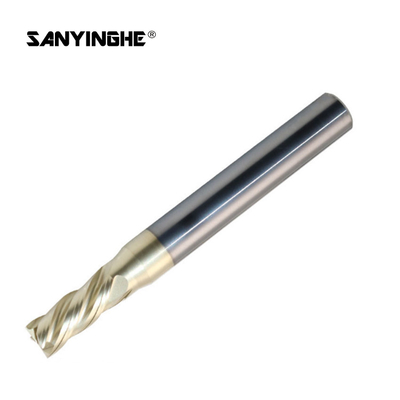

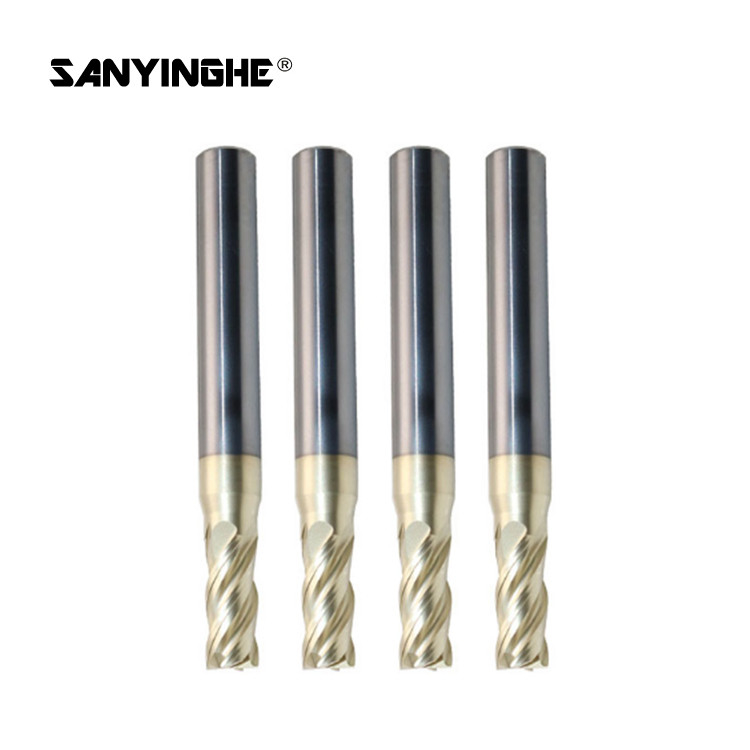

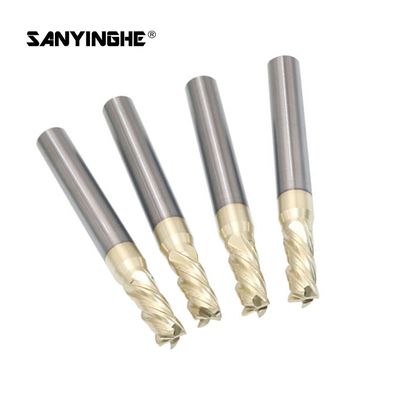

Product Name |
Carbide End Mills |
| Material | Carbide |
| Coating | AITiN |
| Color | Copper Color |
| Processing Objects | Carbon Steel |
| Features | Suitable for processing ordinary steel andcastiron materials. |
|
Flute diameter |
Flute length | Overall length | Shank diameter | Flute diameter | Flute length | Overall length | Shank diameter |
| 0.3-0.6 | 1.5 | 50 | ∅4 | ∅5 | 13 | 50 | ∅6 |
| 0.7-0.8 | 2.5 | 50 | ∅4 | ∅6 | 15 | 50 | ∅6 |
| ∅1 | 3 | 50 | ∅4 | ∅7 | 18 | 60 | ∅8 |
| ∅1.5 | 4 | 50 | ∅4 | ∅8 | 20 | 60 | ∅8 |
| ∅2 | 5 | 50 | ∅4 | ∅9 | 22 | 75 | ∅10 |
| ∅2.5 | 6 | 50 | ∅4 | ∅10 | 30 | 75 | ∅10 |
| ∅3 | 8 | 50 | ∅3 | ∅12 | 30 | 75 | ∅12 |
| ∅3.5 | 9 | 50 | ∅4 | ∅14 | 40 | 100 | ∅14 |
| ∅4 | 10 | 50 | ∅4 | ∅16 | 40 | 100 | ∅16 |
| Flute diameter | Flute length | Overall length | Shank diameter | Flute diameter | Flute length | Overall length | Shank siameter |
| ∅18 | 40 | 100 | ∅18 | ∅4 | 15 | 75 | ∅4 |
| ∅20 | 45 | 100 | ∅20 | ∅5 | 20 | 75 | ∅6 |
| ∅3 | 12 | 75 | ∅4 | ∅6 | 24 | 75 | ∅6 |
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
