Solid Tungsten Carbide End Milling Cutter 8mm End Mills Cnc Tool

Solid Tungsten Carbide End Milling Cutter 8mm End Mills Cnc Tool
Solid Tungsten Carbide End Milling Cutter 8mm End Mills Cnc Tool Solid Tungsten Carbide End Milling Cutter 8mm End Mills Cnc Tool Solid Tungsten Carbide End Milling Cutter 8mm End Mills Cnc Tool Solid Tungsten Carbide End Milling Cutter 8mm End Mills Cnc Tool Solid Tungsten Carbide End Milling Cutter 8mm End Mills Cnc Tool Solid Tungsten Carbide End Milling Cutter 8mm End Mills Cnc Tool

Large Image :  Solid Tungsten Carbide End Milling Cutter 8mm End Mills Cnc Tool

Product Details:
Place of Origin: Zhuzhou,China
Brand Name: Sanyinghe
Certification: ISO
Model Number: D4/6/8/10/12/16/20mm
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: 1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs/month
Detailed Product Description
Material: Tungsten Carbide Usage: Carbon Steel, Alloy Steel, Cast Iron
Coating: AlTiN OEM: Yes
Machine Type: Milling Machine Application: Cutting,engraving,milling,relief,etc
High Light:

Solid Tungsten Carbide End Milling Cutter

,

Cnc Carbide End Milling Cutter

,

8mm End Mill

8mm Square End Mills Cnc Tool Solid Tungsten Carbide End Milling Cutter For Stainless Steel Milling

PRODUCT DESCRIPTION



  1. Material: Solid Carbide
  2. Type: Flat/Square Nose End Mill
  3. Helix Angle: 35
  4. Flutes: 2/4/6
  5. Centered Cutting: Yes
  6. Workpiece Material: Steel, mould steel, low alloy, non-treated steel
  7. Process Type: semi-finish,finish
  8. Application: Copy milling
  9. Cutting Condition: Dry, Wet

Fearture:

1. Made in high quality tungsten carbide material;

2. Made by full grinding process;

3. Precise dimension, high accuracy;

4. 100% inspection;

5. Special design for perfect cutting performance and effciency;

6. Super long tool life;

7. Customized tool design, marking, packing are available.





Product Name

Carbide End Mills
Material Carbide
Coating AITiN
Color Copper Color
Processing Objects Carbon Steel
Features Suitable for processing ordinary steel andcastiron materials.



2/4 Flute end mill

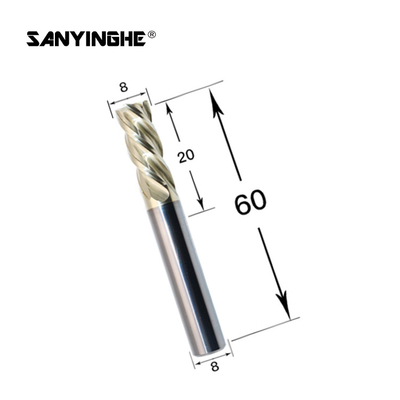

Outside Diameter(D) Shank Diameter(d) Flute Length(l) Overall Length(L)
1.0 4 3 50
1.5 4 4.5 50
2.0 4 6 50
2.5 4 7 50
3.0 4 8 50
4.0 4 11 50
5.0 6 13 50
6.0 6 15 50
7.0 8 18 60
8.0 8 20 60
9.0 10 23 75
10.0 10 25 75
11.0 12 28 75
12.0 12 30 75
16.0 16 40 100
20.0 20 40 100





Long length 2/4 flute end mill

Outside Diameter(D) Shank Diameter(d) Flute Length(l) Overall Length(L)
3.0 6 12 75
4.0 6 16 75
5.0 6 20 75
6.0 6 25 75
8.0 8 30 75
3.0 6 15 100
4.0 6 20 100
5.0 6 25 100
6.0 6 30 100
8.0 8 35 100
10.0 10 40 100
12.0 12 45 100
8.0 8 40 150
10.0 10 50 150
12.0 12 50 150
16.0 16 70 150
20.0 20 80 150

Solid Tungsten Carbide End Milling Cutter 8mm End Mills Cnc Tool 0Solid Tungsten Carbide End Milling Cutter 8mm End Mills Cnc Tool 1Solid Tungsten Carbide End Milling Cutter 8mm End Mills Cnc Tool 2

FAQ



1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.



2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.



3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.



4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.



5. What is your terms of payment?



Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
