Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill

Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill
Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill

Large Image :  Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill

Product Details:
Place of Origin: Zhuzhou,China
Brand Name: Sanyinghe
Certification: ISO
Model Number: 4mm 6mm 8mm 10mm 12mm 16mm 20mm
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: 1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs/month
Detailed Product Description
Material: Tungsten Carbide Usage: Steel, Stainless Steel
Application: CNC Machine Tools OEM: Yes
High Light:

Hrc45 Milling Machine Drill Bits

,

Hrc55 Milling Machine Drill Bits

,

CNC Corner Rounding End Mill

Hrc45 / 55 / 60 CNC Carbide End mill Side Machining Mill Cutter Milling Cutter Router Bits For Metal

PRODUCT DESCRIPTION

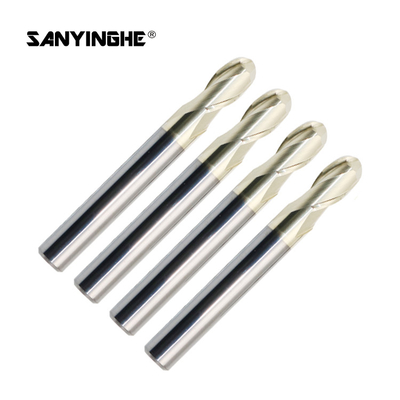

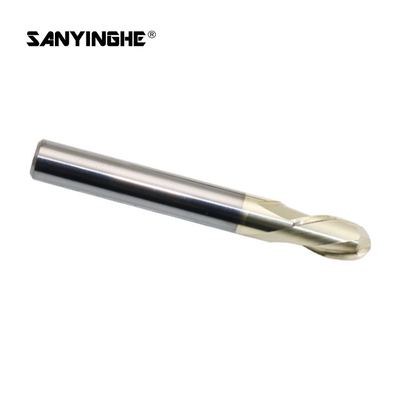

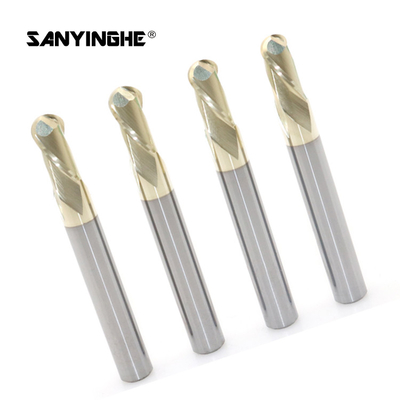

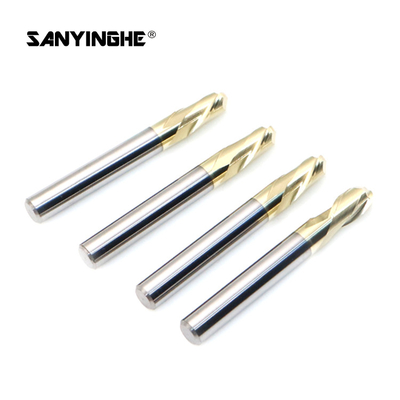

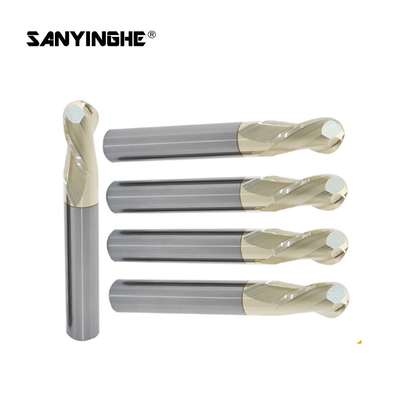

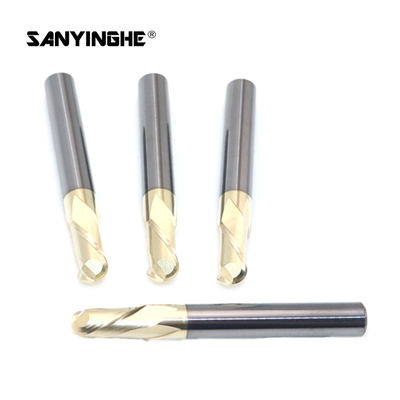

  1. Product Name: 2 Flutes Carbide Ball Nose end mills
  2. Type: CNC milling cutter tool
  3. Material: Tungsten steel
  4. HRC:45/55/63
  5. Coating: AlTiN, TiSiN, NaNO
  6. Helix angle: 35
  7. Cutter blade number: 2 flutes Flute
  8. Diameter: 1-20mm
  9. Overall length: 50-150mm
  10. Suitable for: Copper, Cast Iron, Carbon Steel, Alloy Steel, Stainless Steel, etc.
  11. Application: CNC Process, Router Bit, Wood Metal Milling Cutter, Milling Tool, Lathe Tool, Carving, Engraving Tool.

1.Tungsten steel material
Ultra-fine grain tungsten steel material, effectively ensure the quality of milling cutter,lt can greatly improve
the tool life.

2.DOUBLE-EDGE DESIGN
Improves rigidity and surface finish
effectively.Cutting edge over the center reduces the cutting resistance.
The high capacity of junk slots benefits chip removal and increases machining efficiency.

3.FLUTES DESIGN
Good for chip removal, easy for vertical feed processing, widely used in the slot, profile, and hole processing.



Cutter Dia. (D)
Shank Dia.(D1)
Flute Length(L1)
Overall Length(L)
R0.5
4
2
50
R0.75
4
3
50
R1
4
4
50
R1.25
4
5
50
R1.5
3/4
6
50
R2
4
8
50
R2.5
5/6
10
50
R3
6
12
50
R4
8
16
60
R5
10
20
75
R6
12
24
75
R8
16
32
100
R10
20
40
100









Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill 0Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill 1Hrc45 55 60 Milling Machine Drill Bits CNC Corner Rounding End Mill 2

FAQ



1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.



2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.



3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.



4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.



5. What is your terms of payment?



Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
