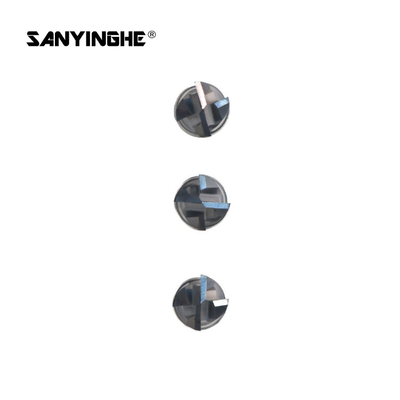

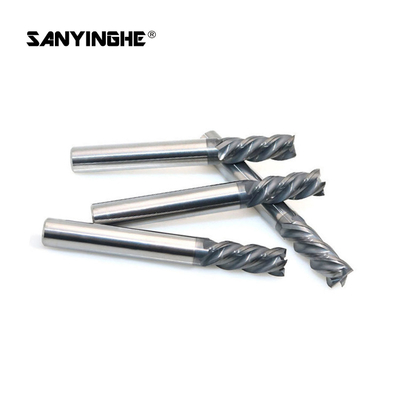

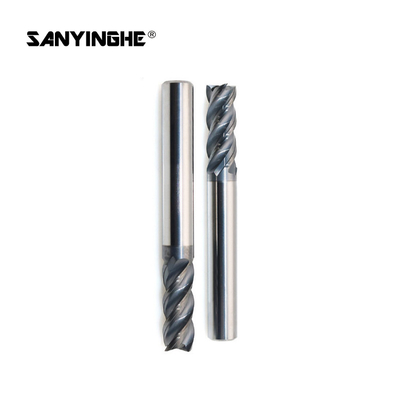

4mm Solid Carbide End Mills 50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65

China Zhuzhou Sanyinghe International Trade Co.,Ltd certification
China Zhuzhou Sanyinghe International Trade Co.,Ltd certification
The package has arrived in complete quantity and in good condition, nice and good test tool, very accurate, all as described, recommend! I want to buy again !

—— Jim Massey

Все отлично! Заказ получен вовремя, отличное качество.Продавец ответственный, рекомендую!

—— Dmitry Anatolevich Borodulin

il est excellent, il a répondu aux objectifs souhaités.. aucune déformation après usage.

—— Zoheir OURIMECHI

이 물건 덕분에 보일러 기동 했습니다. 감사드립니다. Thank you

—— 김유섭

Ótimo produto vendedor me deu muita Atenção, super recomendo, no prazo combinado Chegou

—— Amarildo Ribeiro

Качественные вставки. Не первый раз заказываю у этого продавца, качество шикарное.

—— Igor Korolev

très solide. bien emballé pzrfait merci

—— gouessant Herve

хорошая Лерка нарезает отлично рекомендую уже не первый раз беру инструмент у этого продавца

—— Olesya Akelkina

Item as described. Good seller. Nice to deal with.

—— Vitaly Romashchenko

llegó muy rápido y el vendedor me envió información adicional recomiendo el vendedor y su producto

—— Nelson Rodrigo Agüero Vasquez

Great high quality item, I am very satisfied thank you

—— David Surman

The recipient likes the product and will use it. You did a great job. I'll order again if I need it.

—— Craig Poppe

I'm Online Chat Now

4mm Solid Carbide End Mills 50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65

4mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65
4mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65 4mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65 4mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65 4mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65 4mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65 4mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65

Large Image :  4mm Solid Carbide End Mills 50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65

Product Details:
Place of Origin: Zhuzhou,China
Brand Name: sanyinghe
Certification: ISO
Model Number: D4/6/8/10/12/16/20mm
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: 1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs/month
Detailed Product Description
Material: Tungsten Carbide Usage:: Carbon Steel, Alloy Steel, Cast Iron
Application: CNC Milling Machining Advantages: High Performance
Suitable For: Steel, Stainless Steel.etc Shank Diameter: 4-20mm
High Light:

HRC60 Carbide End Mills

,

HRC65 Solid Carbide End Mills

,

4mm Ball Nose Milling Cutter

HRC45 HRC55 HRC60 HRC65 Solid Carbide End Mills 4mm 50Lx4F Milling Cutter For Steel And Stainless Steel Machining



PRODUCT DESCRIPTION

1: High efficiency machining can be achieved ranging from common steel to pre-hardened steel machining.
2: Appropriate combination of sharp cutting edge and tool strength makes cutting easier and faster, extending tool life.
3: Suitable for rough machining with high metal removal rate to finish machining with high surface quality.
4: Minimum diameter of 0.3MM for machining of the samllest parts.



TYPE
Diameter Range
Overall Length Range
Teeth Number Choice
HRC58 Carbide Flat End Mills
D0.5-D20.0mm
50-150mm
2/4/6
HRC58 Carbide Ball Nose End Mills
D0.5-D20.0mm
D0.5-D20.0mm
2/4
HRC58 Carbide Corner Radius End Mills
D0.5-D20.0mm
D0.5-D20.0mm
2/4
4mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65 0
Optimized geometry,improves chip removal and curling, reduces the cutting force.
4mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65 1
High Stability of the cutting edge treatment and good rigidity structure, improves metal wipe-off and machining efficiency.
4mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65 2
With excellent wear resistance and toughness,obtain good wear resistance and breakage resistance



Product Name

Carbide End Mills

Material

Carbide

Coating

AITiN

Double Core

Deep groove: efficient chip removal during high speed cutting

Shallow groove: to ensure the strength of the end mill.

Processing Objects

Carbon Steel

Features

Suitable for processing ordinary steel andcastiron materials.

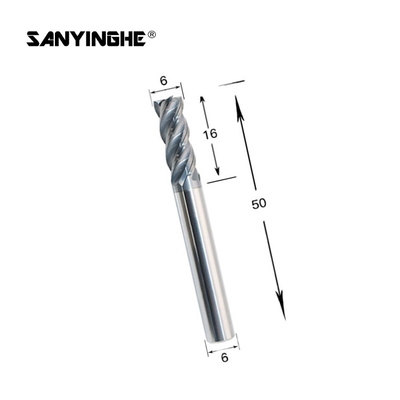

Flute
Blade Diameter
Blade Length
Shank
Full Length
4
3
8
4
50
4
4
11
4
50
4
5
13
6
50
4
6
15
6
50
4
8
20
8
60
4
10
25
10
75
4
12
30
12
75
4
16
45
16
100
4
20
45
20
100





4mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65 34mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65 44mm Solid Carbide End Mills  50Lx4F Ball Nose Milling Cutter HRC45 HRC55 HRC60 HRC65 5
