Product Details:
Payment & Shipping Terms:
|
| Material: | Tungsten Carbide | Usage: | Aluminum Alloy And Copper Alloy |
|---|---|---|---|
| Advantages: | High Performance, Long Life | Type: | End Mill, Standard Or Custom Milling Cutter |
| Name: | Aluminum End Mills | Size: | Customer's Requirement |
| High Light: | Tungsten 3 Flute End Mill,Aluminum 3 Flute End Mill,Cnc Carbide Router Bit |
||

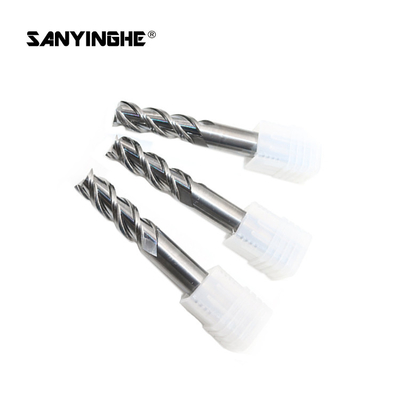

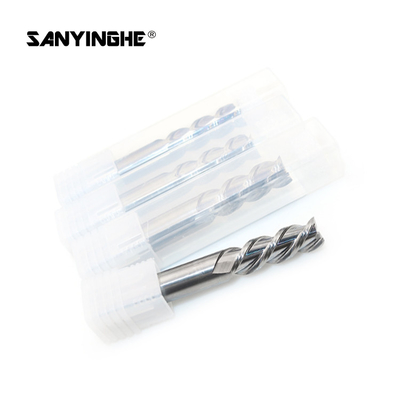

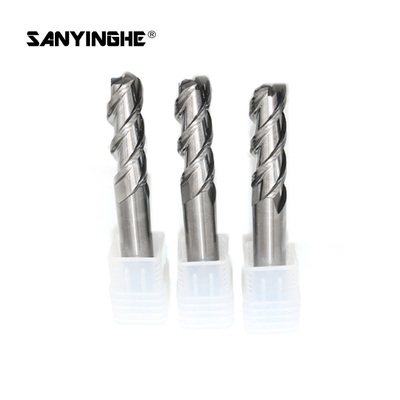

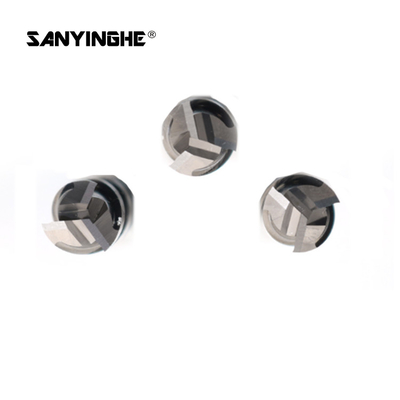

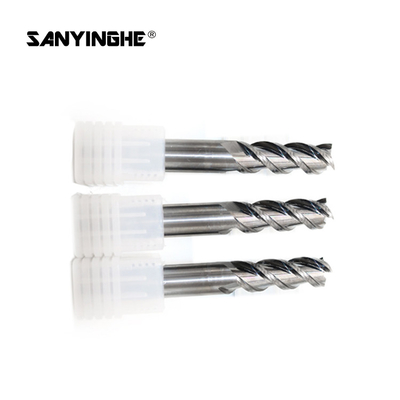

2 / 3 / Single Flute End Mill Cnc Carbide Router Bit Aluminum Milling Cutter CNC CAD CAM Spiral Cutting Tool For Woodworking
Specifications:
1. Slot with big capacity with high chipping removal.
2.Mirror ultra-finish surface on cutting edge and slot,no remaining on surface during working.
3.45 Degree helix helps chip removal and generates an excellent surface finish.
4.High quality tungsten carbide material with flexural strength.
5.Suitable for: Copper, Cast Iron, Carbon Steel, Mould Steel, Plastic, Wood, Acrylic, etc.
6.Application: CNC Processing, Router Bit, Woodworking Metal Milling Cutter, Milling Tool, Lathe Tool, Carving, Engraving Tool.
Standard Sizes:
| Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
| 1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
| 1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
| 2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
| 2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
| 3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
| 3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
| 4.0×10×4D×50L | 4 | 10 | 4 | 50 |
| 4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
| 5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
| 5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
| 6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
| 6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
| 7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
| 7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
| 8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
| 8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
| 9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
| 9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
| 10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
| 10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
| 11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
| 11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
| 12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
| 13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
| 14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
| 15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
| 16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
| 17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
| 18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
| 19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
| 20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
| 25.0×40×25D×100L | 25.0 | 40 | 25 | 100 |
