Zhuzhou Sanyinghe International Trade Co.,Ltd
Home ProductsCarbide Ball Nose End Mills

HRC55 HRC63 Carbide Ball Nose End Mills Milling Cutter 2 Flute Router Bits

China Zhuzhou Sanyinghe International Trade Co.,Ltd certification
China Zhuzhou Sanyinghe International Trade Co.,Ltd certification
The package has arrived in complete quantity and in good condition, nice and good test tool, very accurate, all as described, recommend! I want to buy again !

—— Jim Massey

Все отлично! Заказ получен вовремя, отличное качество.Продавец ответственный, рекомендую!

—— Dmitry Anatolevich Borodulin

il est excellent, il a répondu aux objectifs souhaités.. aucune déformation après usage.

—— Zoheir OURIMECHI

이 물건 덕분에 보일러 기동 했습니다. 감사드립니다. Thank you

—— 김유섭

Ótimo produto vendedor me deu muita Atenção, super recomendo, no prazo combinado Chegou

—— Amarildo Ribeiro

Качественные вставки. Не первый раз заказываю у этого продавца, качество шикарное.

—— Igor Korolev

très solide. bien emballé pzrfait merci

—— gouessant Herve

хорошая Лерка нарезает отлично рекомендую уже не первый раз беру инструмент у этого продавца

—— Olesya Akelkina

Item as described. Good seller. Nice to deal with.

—— Vitaly Romashchenko

llegó muy rápido y el vendedor me envió información adicional recomiendo el vendedor y su producto

—— Nelson Rodrigo Agüero Vasquez

Great high quality item, I am very satisfied thank you

—— David Surman

The recipient likes the product and will use it. You did a great job. I'll order again if I need it.

—— Craig Poppe

I'm Online Chat Now

HRC55 HRC63 Carbide Ball Nose End Mills Milling Cutter 2 Flute Router Bits

HRC55 HRC63 Carbide Ball Nose End Mills Milling Cutter 2 Flute Router Bits
HRC55 HRC63 Carbide Ball Nose End Mills Milling Cutter 2 Flute Router Bits HRC55 HRC63 Carbide Ball Nose End Mills Milling Cutter 2 Flute Router Bits HRC55 HRC63 Carbide Ball Nose End Mills Milling Cutter 2 Flute Router Bits HRC55 HRC63 Carbide Ball Nose End Mills Milling Cutter 2 Flute Router Bits HRC55 HRC63 Carbide Ball Nose End Mills Milling Cutter 2 Flute Router Bits

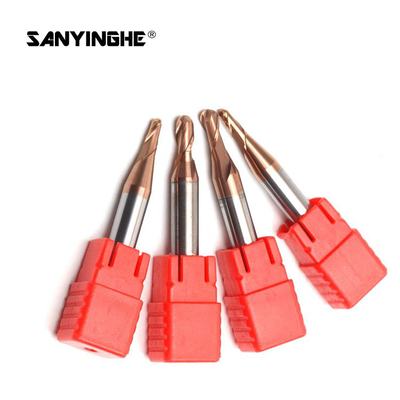

Large Image :  HRC55 HRC63 Carbide Ball Nose End Mills Milling Cutter 2 Flute Router Bits

Product Details:
Place of Origin: Zhuzhou, China
Brand Name: Sanyinghe
Certification: ISO
Model Number: Customize
Payment & Shipping Terms:
Minimum Order Quantity: 3-5PCS
Price: Negotiation
Packaging Details: 1PCS/ PVC Packing, 10PCS PVC Packing
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8000Pcs/Month
Detailed Product Description
Material: Carbide Name: 2 Flute Carbide Ballnose End Mill
Advantages: Sharp Cutting Edge,wearable,no Burrs Workpiece: Steel, Cast Iron, Alloy Steel, Stainless Steel, Copper Alloy
Precision: High Precision
High Light:

HRC55 Carbide Ball Nose End Mills

,

HRC63 Carbide Ball Nose End Mills

,

2 Flute Router Bit

Ball Nose Milling Cutter HRC55 HRC63 Solid Carbide Ball Nose End Mill 2 Flute Router Bits For Steel Metal

Product Description:



1.  Precision machining by high accurate equipment;
2.  With good milling and cutting performance, ensuring high efficiency;
3.  High hardness, wear resistance, and intensity; anti-bending;
4.  To removing chips, with big space and small resistance; Smooth chip removal, less heating value, to reduce pollution;
5.  Sharp cutting edge, reduce cutting force, lower breaking rate and improve the quality of hole wall;
6.  Symmetrical cutting blade, help to high effective cutting, avoiding drilling offset.



Product Name
Spiral Cutter Bit Spiral Ball Nose End Mill
Flute
Two Flute
Diameter
3.175mm 4mm 6mm 8mm
Process Material
Solid Carbide
Feature
Two Flute, Low price
Suitable Materials
Iron, Cast iron, Common steel, Hardened Steel under hardness HRC55
Application
3D engraving, edge processing, chamfering working and so on.

Note:



We have most conventional products in stock. Also, we can produce for you based on your requirements. Any need, please leave message to us. Thank you!



Item AlTiN TiAiN TiSiN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp( ° ) 900 800 1000 1200
Friction 0.3 0.3 0.45 0.4
Color Black   Copper Blue



Diameter(mm)
Cutting length(mm)
Total length(mm)
Shank diameter(mm)
D1mm
3mm
50mm
4mm
D2mm
4mm
50mm
4mm
D3mm
6mm
50mm
4mm
D4mm
8mm
50mm
4mm
D5mm
10mm
50mm
6mm
D6mm
12mm
50mm
6mm
D8mm
16mm
60mm
8mm
D6mm
20mm
75mm
6mm
D8mm
20mm
75mm
8mm
D10mm
25mm
75mm
10mm
D12mm
25mm
75mm
12mm
D8mm
30mm
100mm
8mm
D10mm
30mm
100mm
10mm
D12mm
30mm
100mm
12mm
D14mm
35mm
100mm
14mm



HRC55 HRC63 Carbide Ball Nose End Mills Milling Cutter 2 Flute Router Bits 0HRC55 HRC63 Carbide Ball Nose End Mills Milling Cutter 2 Flute Router Bits 1HRC55 HRC63 Carbide Ball Nose End Mills Milling Cutter 2 Flute Router Bits 2

FAQ







1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.



2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.





3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.





4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.



5. What is your terms of payment?



Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
