| Usage: | Internal Turning Tool | Material: | WC+CO |
|---|---|---|---|
| Coating Color: | Black/Bronze/Double Color | Workpiece Material: | STEEL/STAINLESS STEEL |
| Coating: | CVD/PVD | Color: | Black/bronze |
| High Light: | High Feeding CNC Milling Insert,Indexable CNC Milling Insert,SOMT070306 |
||

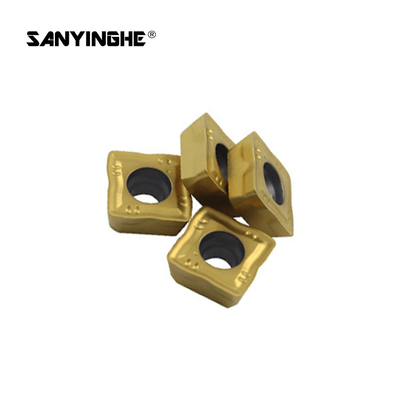

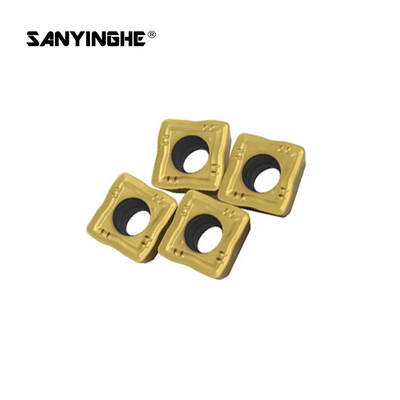

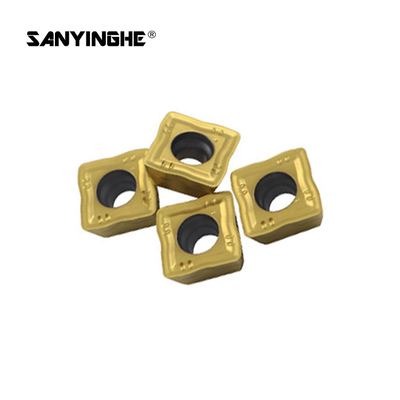

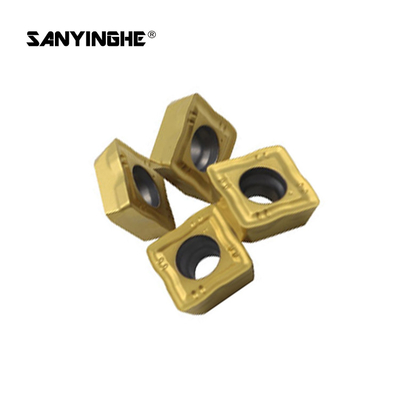

High Feeding Milling Inserts SOMT070306 Carbide Indexable Cutting Inserts SOMT DP Lathe Tool U Drill Insert
Product Description:
1. High-feed milling is a machining method that pairs shallow depth of cut (DOC) with high feed rate up to 2.0 mm per tooth
2. This combination maximizes the amount of metal being removed from a part and increases the number of finished parts in a given time
3. High feed milling insert SOMT type with 4 edges is highly economical; A tough submicron substrate, improved TiAlN PVD coated grade for better chip flow.
4. It has an extraordinary cutting feed rate. Excellent notch wear and built-up edge resistance.
5. Designed for machining heat resistant alloys, austenitic stainless steel, hard alloys and carbon steel at medium to high cutting speeds, interrupted cut and unfavorable conditions. Application for plane machining, step machining, grooving machining and cavity machining.
| Size | Dimension(mm) | |||
| d | t | r | D1 | |
| 05 | 4.9 | 2.38 | 0.4 | 2.25 |
| 06 | 5.7 | 2.38 | 0.4 | 2.60 |
| 07 | 6.8 | 2.80 | 0.6 | 2.60 |
| 08 | 7.9 | 3.97 | 0.6 | 2.85 |
| 09 | 9.2 | 3.97 | 0.8 | 3.80 |
| 11 | 11.0 | 3.97 | 0.8 | 3.80 |
| 13 | 12.8 | 4.40 | 0.8 | 4.40 |
| 15 | 15.0 | 4.80 | 1.0 | 5.40 |
| Designation | Coated | |||||
| TT9080 | TT8020 | TT9300 | TT9030 | TT6030 | TT7400 | |
| SOMT050204DP | * | * | * | |||
| SOMT060204DP | * | * | * | |||
| SOMT070306DP | * | * | * | |||
| SOMT08T306DP | * | * | * | |||
| SOMT09T308DP | * | * | * | |||
| SOMT11T308DP | * | * | * | |||
| SOMT130408DP | * | * | * | |||
| SOMT150510DP | * | * | * | |||
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
