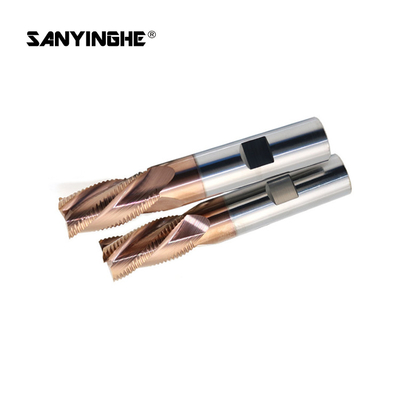

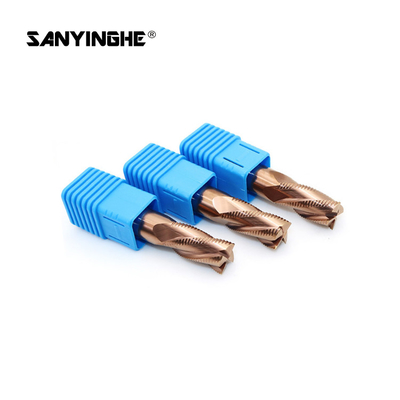

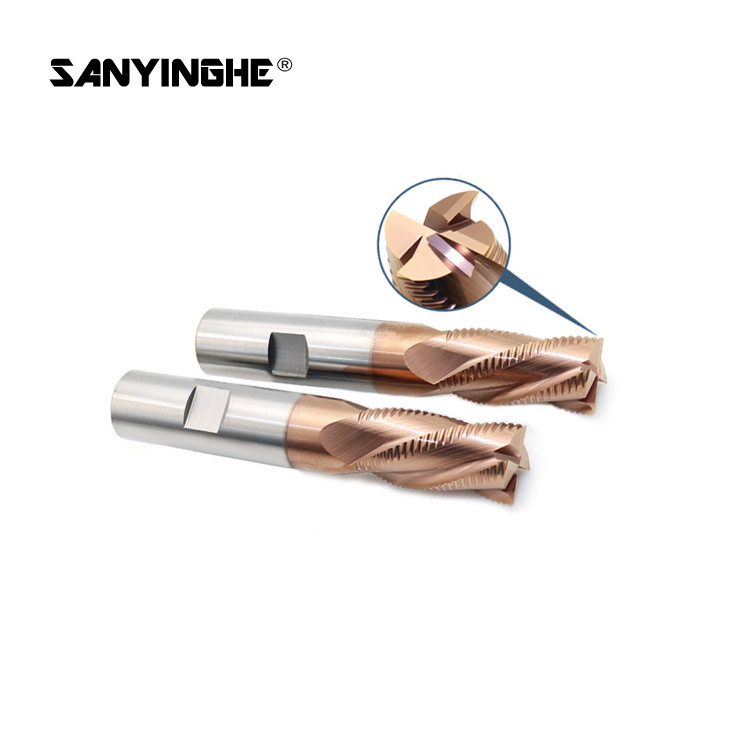

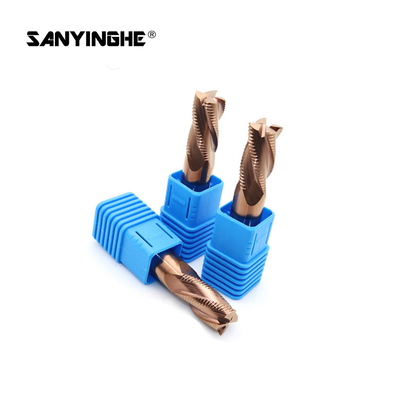

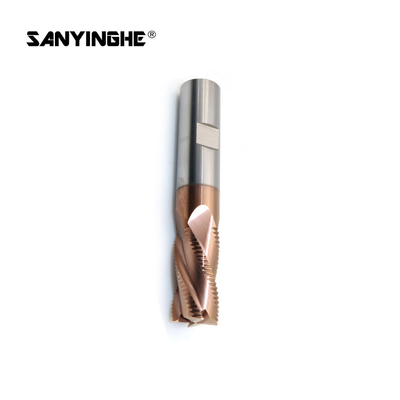

HRC55 Rouging Solid Tungsten Carbide End Mills CNC Full Teeth Thread Milling Cutter

HRC55 Rouging Solid Tungsten Carbide End Mills CNC Full Teeth Thread Milling Cutter
HRC55 Rouging Solid Tungsten Carbide End Mills CNC Full Teeth Thread Milling Cutter HRC55 Rouging Solid Tungsten Carbide End Mills CNC Full Teeth Thread Milling Cutter HRC55 Rouging Solid Tungsten Carbide End Mills CNC Full Teeth Thread Milling Cutter HRC55 Rouging Solid Tungsten Carbide End Mills CNC Full Teeth Thread Milling Cutter HRC55 Rouging Solid Tungsten Carbide End Mills CNC Full Teeth Thread Milling Cutter

Large Image :  HRC55 Rouging Solid Tungsten Carbide End Mills CNC Full Teeth Thread Milling Cutter

Product Details:
Place of Origin: Zhuzhou,China
Brand Name: Sanyinghe
Certification: ISO
Model Number: D4/6/8/10/12/16/20mm
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: 1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs/month
Detailed Product Description
Material: Tungsten Carbide Machine Type: Milling Maching
Name: CNC Thread Milling Cutter Advantages: Long Service Life
High Light:

HRC55 Solid Tungsten Carbide End Mills

,

Rouging Solid Tungsten Carbide End Mills

,

CNC Thread Milling Cutter

HRC55 Rouging Solid Tungsten Carbide End Mills CNC Full Teeth Thread Milling Cutter For Steel



PRODUCT DESCRIPTION



Advantage :
1.  Optimized geometry, improves chip removal and chip forming with reduced cutting force
2.  Higher feed rates and improved metal removal rate for efficient machining, due to high stability of cutting edge and rigid tool structure.
3.  With excellent wear resistance and toughness, high wear resistance and breakage
resistance is achieved even during high performance milling.
4.  Carbide End Mills can run at higher speeds than high-speed or cobalt steel, it is also more resistant to wear and can be used at high cutting temperatures.



Product Name

Carbide End Mills
Material Carbide
End Tooth Types Square/Ball nose/Coner Radius/Roughing
Machining operation Side face, Profile, Step shoulder, Straight slot
Processing Objects Steel,Hardened steel, Stainless steel, Aluminum
HRC HRC45,HRC50,HRC55,HRC60,HRC65,HRC68



Item Grade
HRC45
(YG10X )
HRC55
(YL10.2 & WF25)
HRC60
(Germany K44 &K40)
HRC65
(Sandvik H10F)
Details
Grain size 0.7um
Co10%
Flexural strength
3320N/mm2
Grain size 0.6um
Co10%
Flexural strength 4000N/mm2
Grain size 0.5um
Co12%
Flexural strength
4300N/mm2
Grain size 0.5um
Co10%
Flexural strength 4300N/mm2
Coating Classifying and Advantage
Item
Coating Type
AlTin
TiAlN
TiSiN
Naco













Characteristic
Hardness(HV)
3300
2800
4300
42(GPA)
Thickness(UM)
2.5-3
2.5-3
3
3
Oxidation Temp.(°C)
900
800
1000
1200
Friction Coefficient
0.35
0.3
0.25
0.4
Color
Black
Bronze
Bronze and gold
Blue
Advantages
High heat stability
Normally cutting
Suitable for heavy cutting, and high hardness cutting
For high precision cutting
Suitable for high speed, dry cutting
Suitable for cutting mould steel, stainless
steel
Suitable for high hardness cutting, mould steel processing
Most suitable for carbide cutting tools, turning insert





HRC55 Rouging Solid Tungsten Carbide End Mills CNC Full Teeth Thread Milling Cutter 0HRC55 Rouging Solid Tungsten Carbide End Mills CNC Full Teeth Thread Milling Cutter 1HRC55 Rouging Solid Tungsten Carbide End Mills CNC Full Teeth Thread Milling Cutter 2



FAQ



1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.



2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.



3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.



4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.



5. What is your terms of payment?



Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
